Courtesy Lamp Bulb: Service and Repair





INTERIOR LIGHT BULB REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

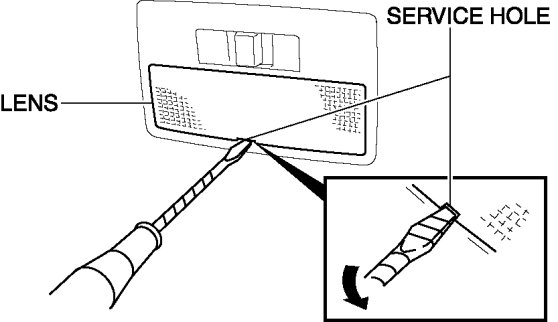

2. Insert a tape-wrapped flathead screwdriver into the service hole, push it in the direction indicated by the arrow, and then remove the lens.

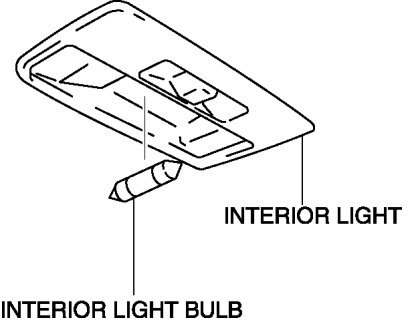

3. Remove the interior light bulb.






4. Install in the reverse order of removal.
