Courtesy Lamp: Testing and Inspection

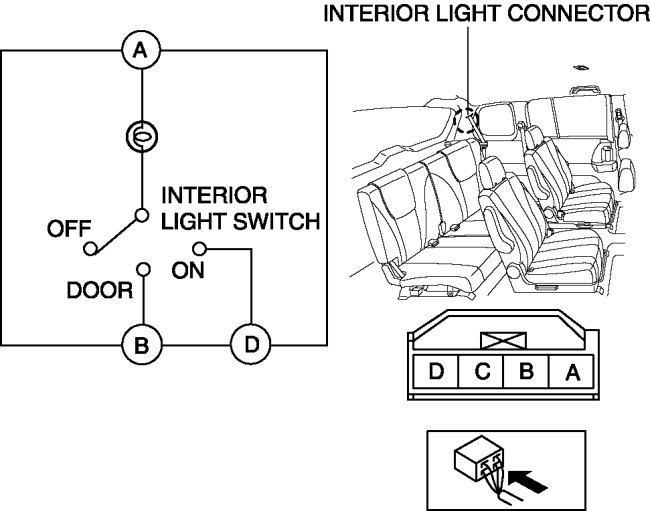

INTERIOR LIGHT INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. A-pillar trim A-Pillar Trim Removal/Installation

b. Sunvisor Service and Repair

c. Map light Map Light Removal/Installation

d. Assist handle Service and Repair

e. Front scuff plate Front Scuff Plate Removal/Installation

f. Rear scuff plate Rear Scuff Plate Removal/Installation

g. B-pillar lower trim B-Pillar Lower Trim Removal/Installation

h. Adjuster anchor cover Front Seat Belt Removal/Installation

i. Upper anchor of the front seat belt Front Seat Belt Removal/Installation

j. B-pillar upper trim B-Pillar Upper Trim Removal/Installation

k. Sub-trunk Sub-Trunk Removal/Installation

l. Trunk end trim Trunk End Trim Removal/Installation

m. Third-row seat Rear - Third-Row Seat Removal/Installation

n. Third-row seat belt lower anchor installation bolt Third-Row Seat Belt Removal/Installation

o. Cargo compartment light Service and Repair

p. Trunk side trim

q. Second-row seat belt upper anchor installation bolt Second-Row Seat Belt Removal/Installation

r. Rear header trim Rear Header Trim Removal/Installation

s. C-pillar trim C-Pillar Trim Removal/Installation

t. Headliner Service and Repair

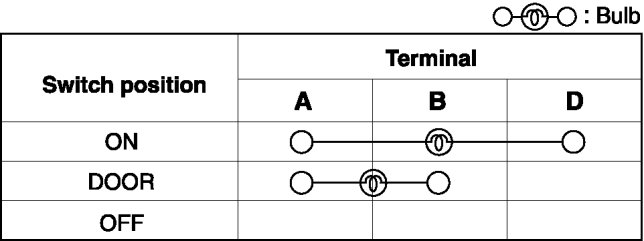

3. Verify that the continuity between the interior light terminals is as indicated in the table.

- If not as indicated in the table, replace the interior light.
