Door Switch: Testing and Inspection
SLIDING DOOR SWITCH INSPECTION 1.
Disconnect the negative battery cable.
2.
Remove the sliding door switch.
Service and Repair 3.

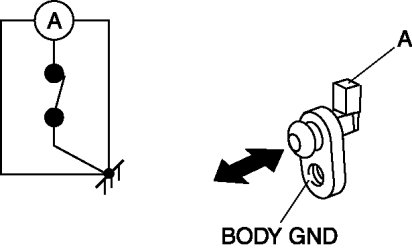

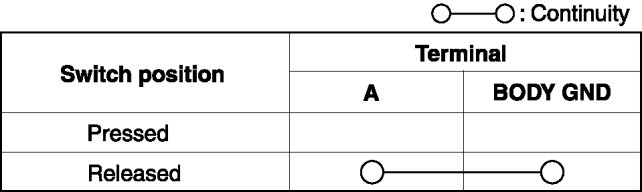

Verify that the continuity between the sliding door switch terminal and the body ground is as indicated in the table.
-
If not as indicated in the table, replace the sliding door switch.
