Fog/Driving Lamp Bulb: Service and Repair





FRONT FOG LIGHT BULB REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Slightly bend back the front mudguard. Mudguard Removal/Installation

3. Disconnect the connector.

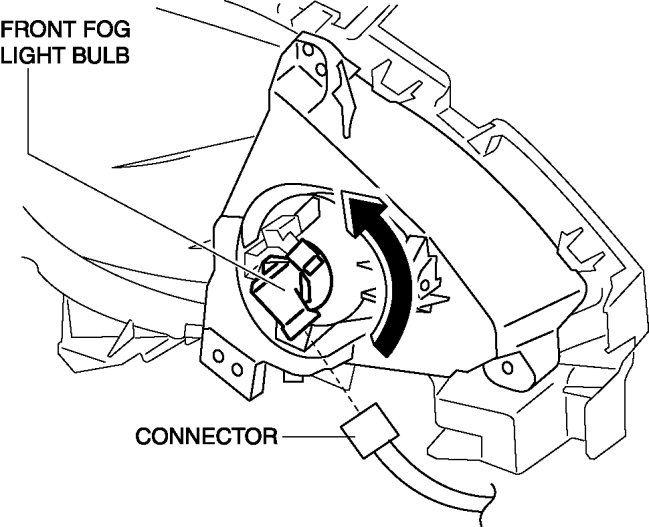

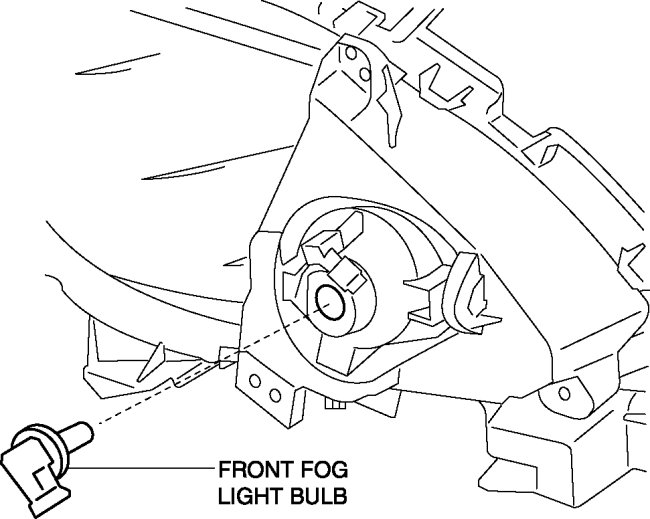

4. Rotate the front fog light bulb in the direction of the arrow shown in the figure.

5. Remove the front fog light bulb.






CAUTION:
- A halogen bulb generates extremely high heat when it is illuminated. If the surface of the bulb is soiled, excessive heat will build up and the life of the bulb will be shortened. When replacing the bulb, hold the metal flange, not the glass.

6. Install in the reverse order of removal.
