Hazard Warning Switch: Service and Repair

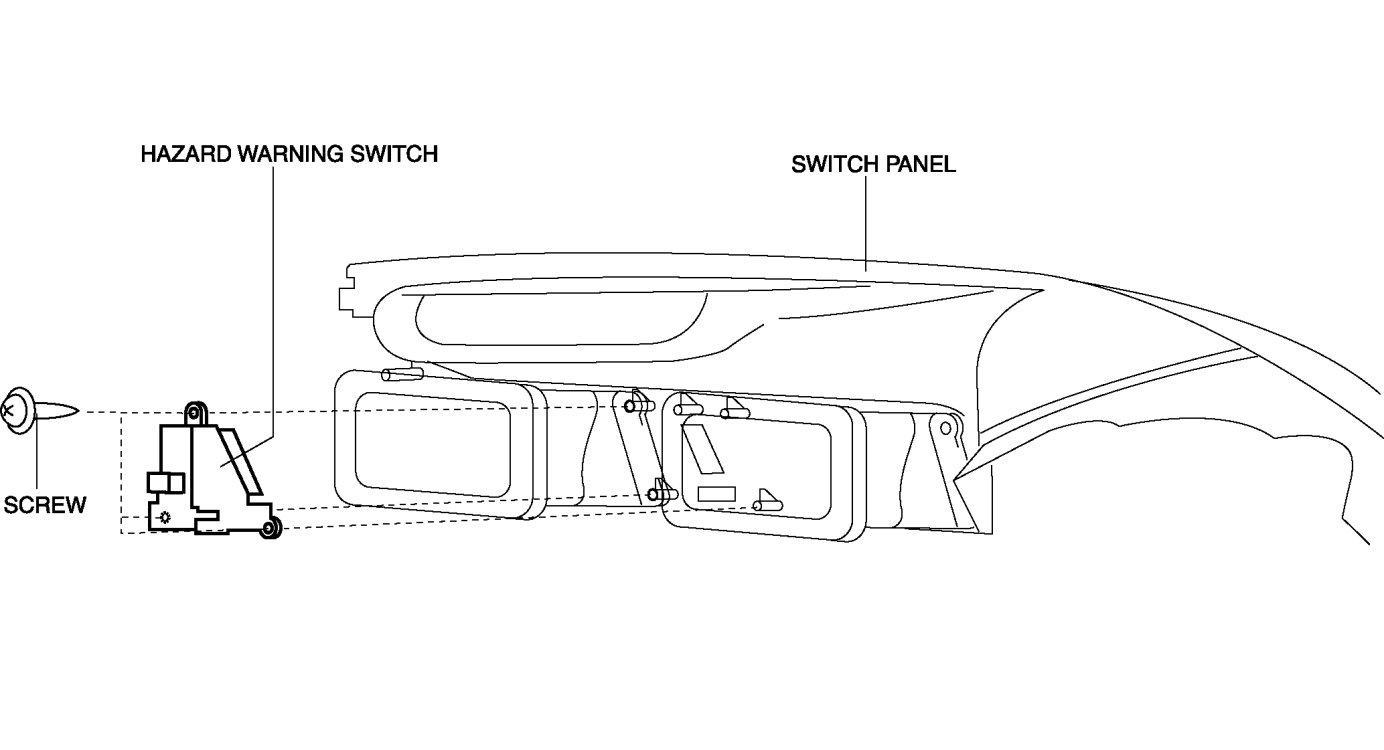

HAZARD WARNING SWITCH REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the following parts:
a.
Upper column cover
Service and Repair b.
Instrument cluster
Removal and Replacement c.
Switch panel
Service and Repair 3.
Remove the screws.
4.
Remove the
hazard warning switch.
5.
Install in the reverse order of removal.
