Headlamp: Testing and Inspection
DISCHARGE HEADLIGHT SYSTEM INSPECTIONWARNING: -
Incorrect servicing of the discharge headlight bulb could result in electrical shock. Before servicing the discharge headlight bulb, always refer to the service warnings.

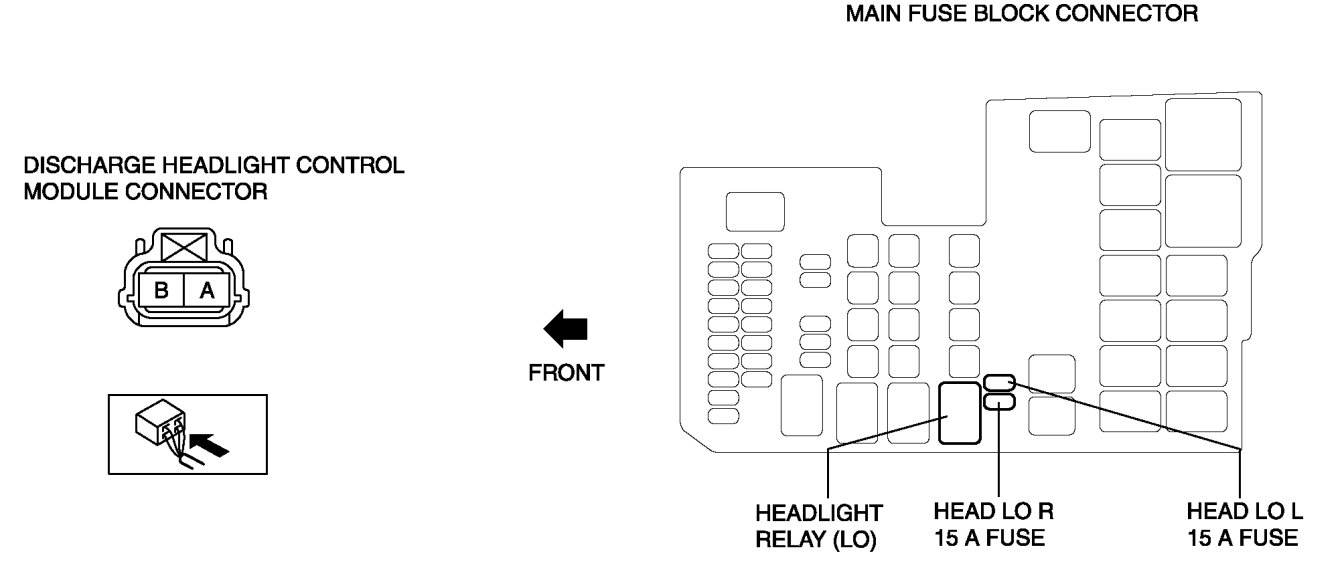

Service PrecautionsTerminal layout

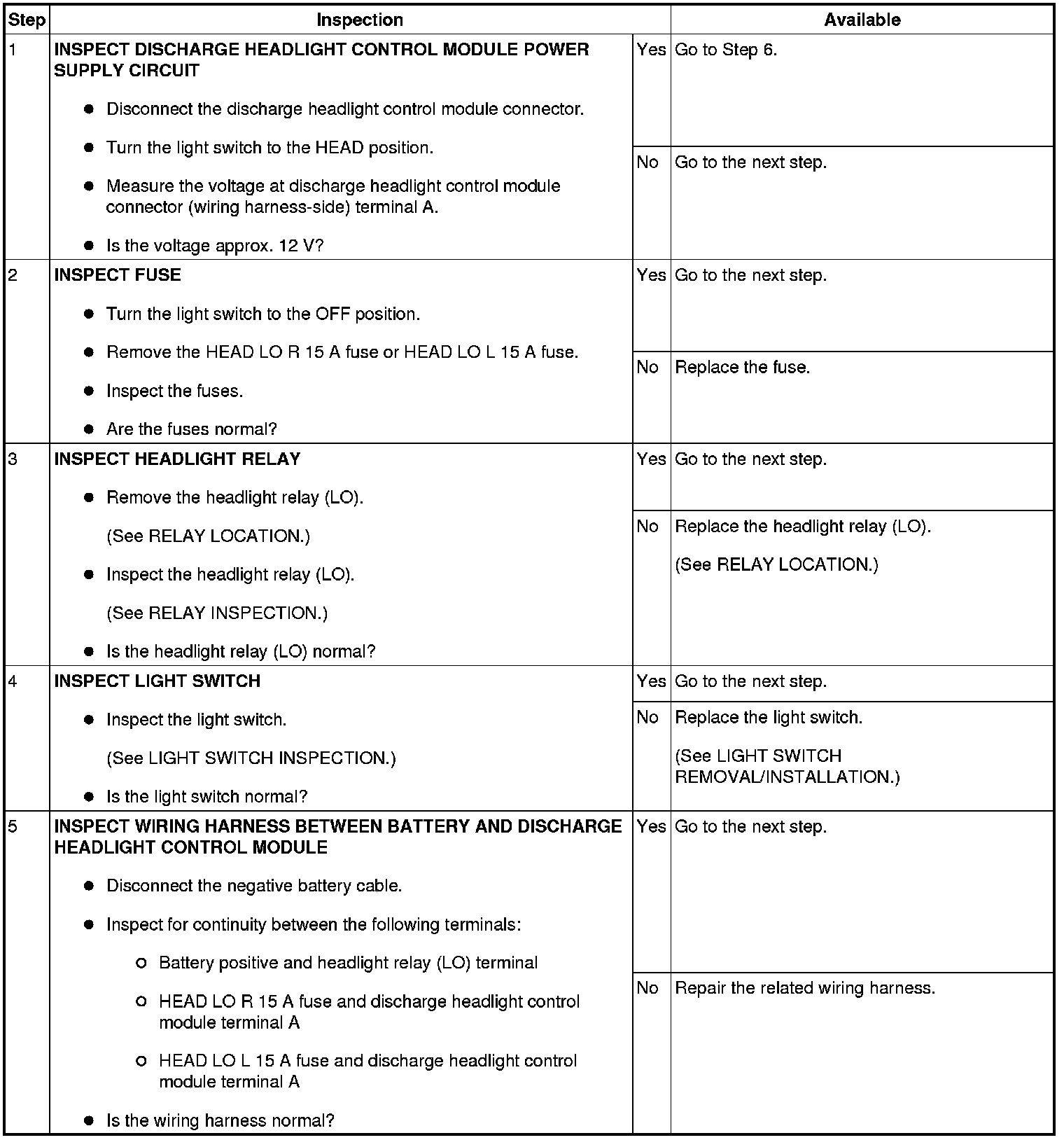

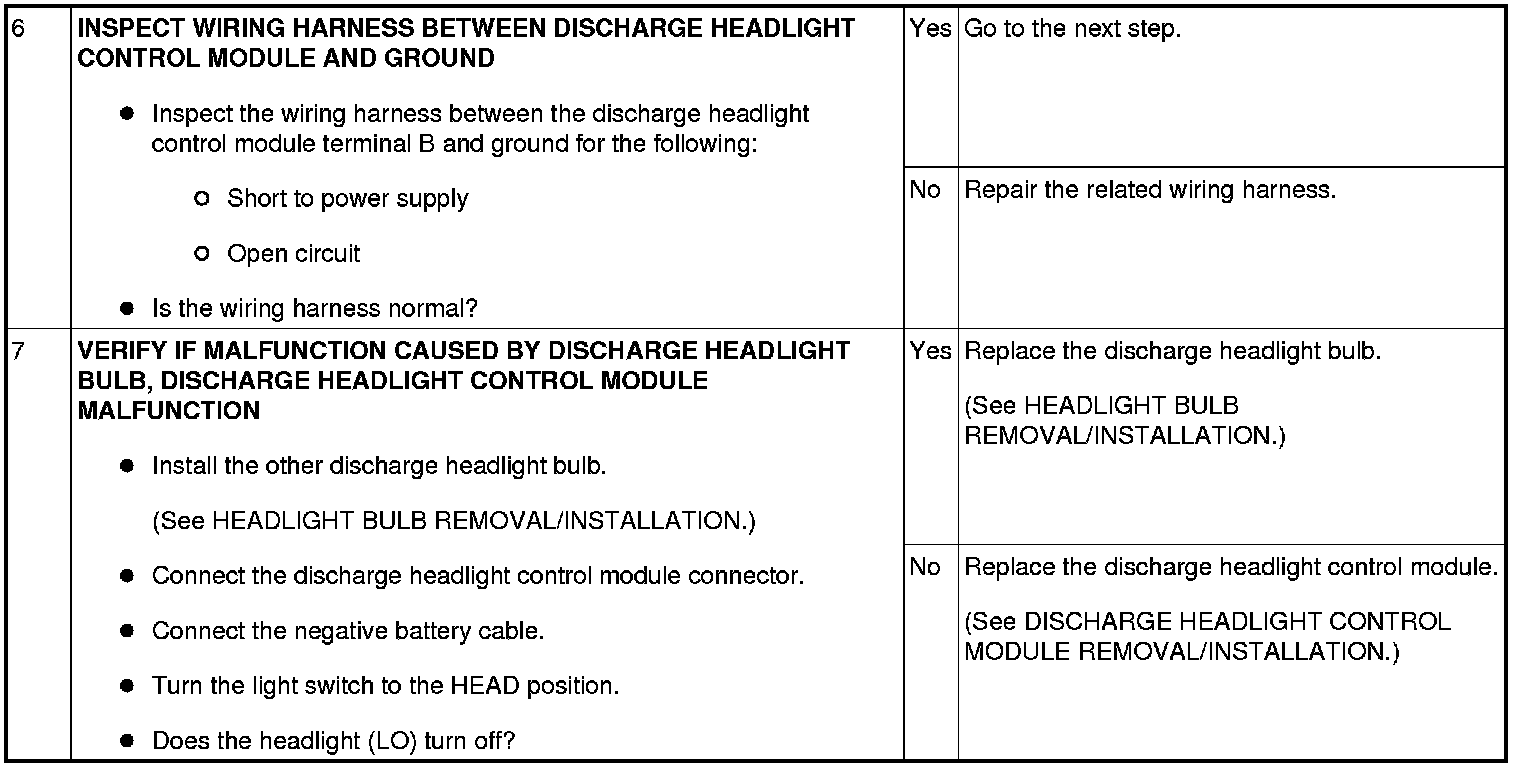

Inspection procedure
