Horn: Testing and Inspection
HORN INSPECTION 1.
Disconnect the negative battery cable.
2.
Slightly bend back the front mudguard.
Mudguard Removal/Installation 3.
Remove the
horn.
Service and Repair 4.

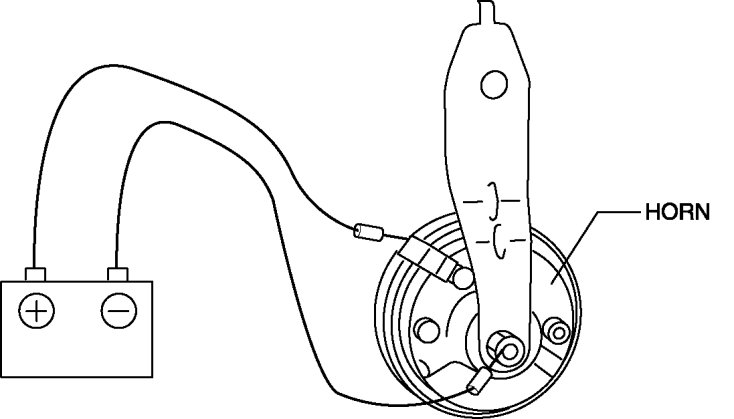

Apply battery positive voltage and connect the ground as shown in the figure and verify the keyless beeper sound operation.
-
If the beep sound cannot be verified, replace the
horn.
