Map Light Removal/Installation

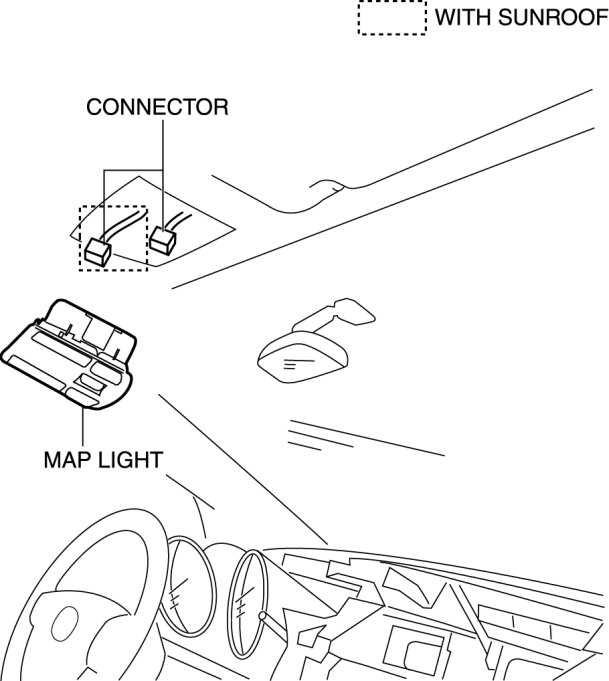

MAP LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

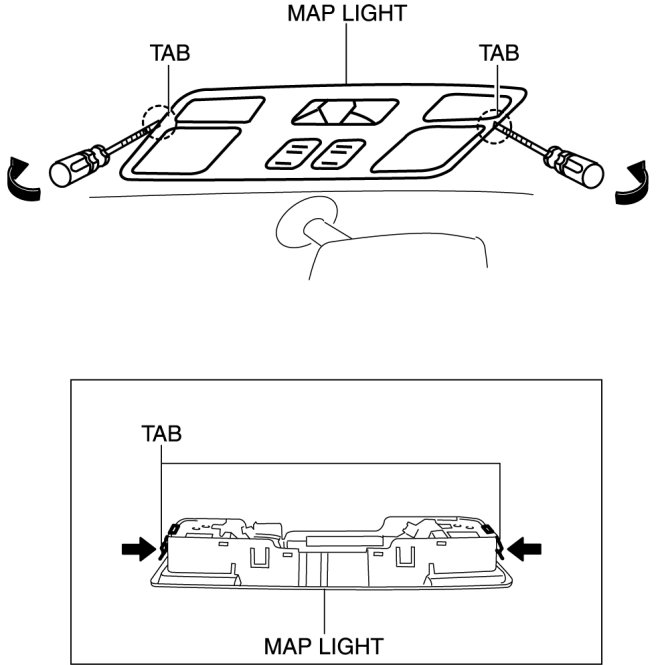

2. Insert a tape-wrapped flathead screwdriver in the position shown in the figure, and detach the tabs by prying it in the direction of the arrow.






CAUTION:
- Be careful not to pull the connector out strongly when removing the map light. Otherwise, the contact surface of the wiring harness secured to the headliner will come off and the wiring harness could be pulled out. If the map light is installed with the wiring harness pulled out, the wiring harness could get caught between the headliner and map light bracket resulting in open or short circuit in the wiring harness.

3. Disconnect the connector.






4. Remove the map light.

5. Install in the reverse order of removal.
