Marker Lamp Bulb: Service and Repair

PARKING/FRONT SIDE MARKER/FRONT TURN LIGHT BULB REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

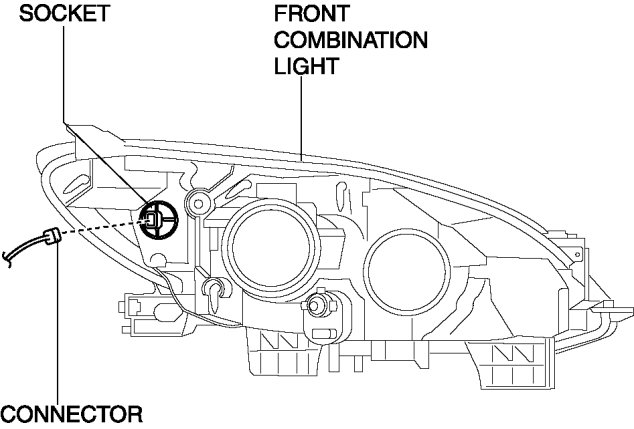

2. Disconnect the connector.

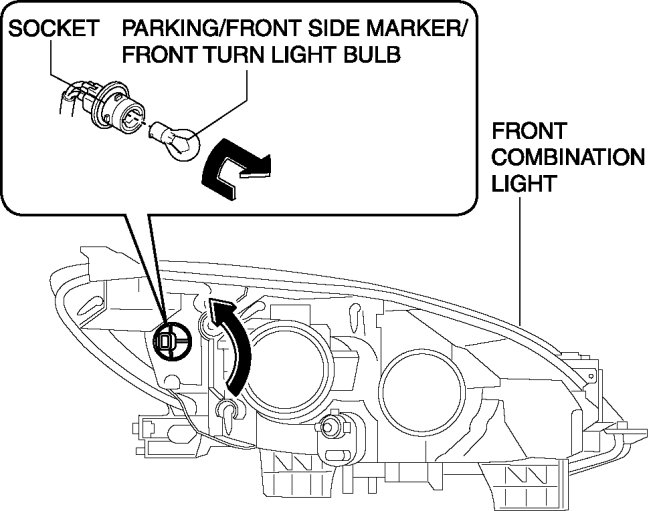

3. Rotate the socket in the direction of the arrow shown in the figure to remove it.

4. Rotate the parking/front side marker/front turn light bulb in the direction of the arrow shown in the figure to remove it from the socket.

5. Install in the reverse order of removal.
