Headlamp Control Module: Service and Repair





DISCHARGE HEADLIGHT CONTROL MODULE REMOVAL/INSTALLATION

CAUTION:
- Incorrect servicing of the discharge headlight control module could result in electrical shock. Read the service warnings before handling the discharge headlight control module. Service Precautions

1. Disconnect the negative battery cable.

2. Remove the front bumper. Removal and Replacement

3. Remove the front combination lights. Service and Repair

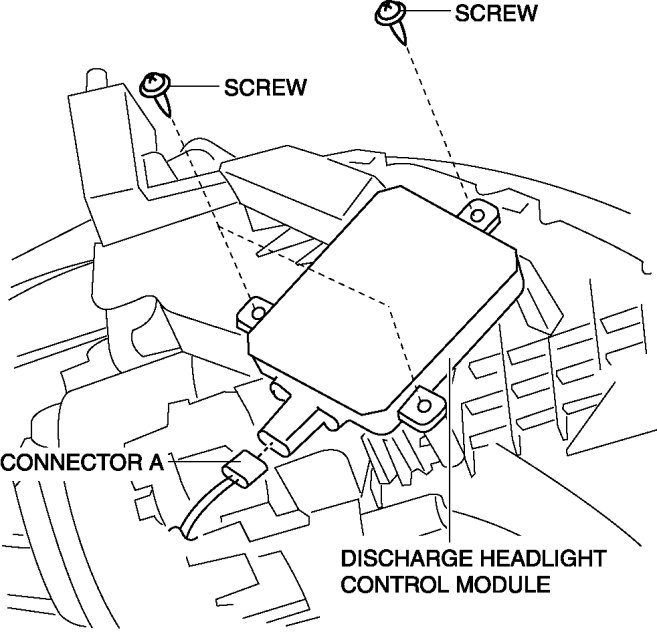

4. Remove the screws.






5. Disconnect connector A.

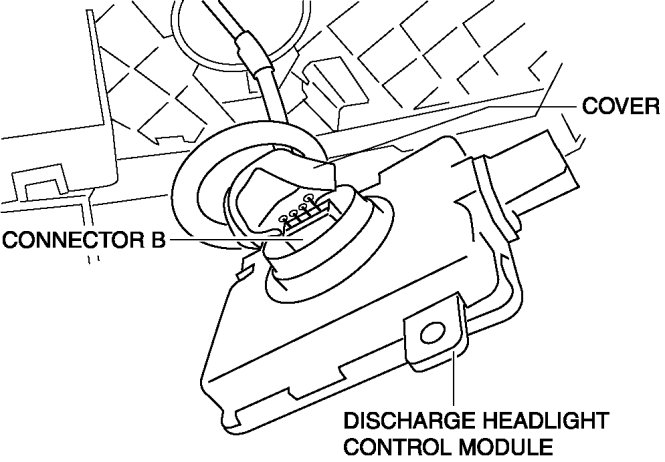

6. Set aside the cover and disconnect connector B.






7. Remove the discharge headlight control module.

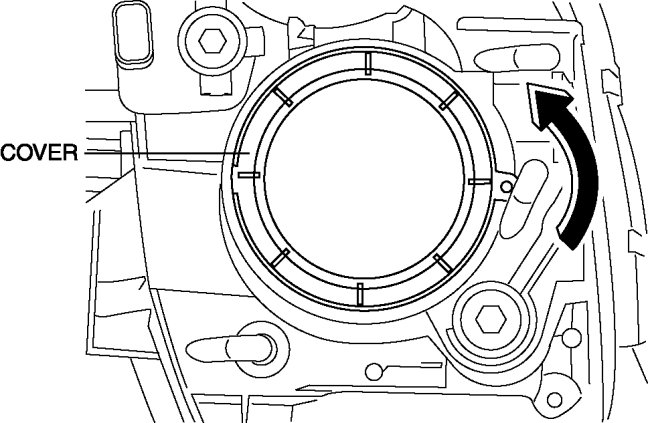

8. Rotate the cover in the direction of the arrow shown in the figure to remove it.

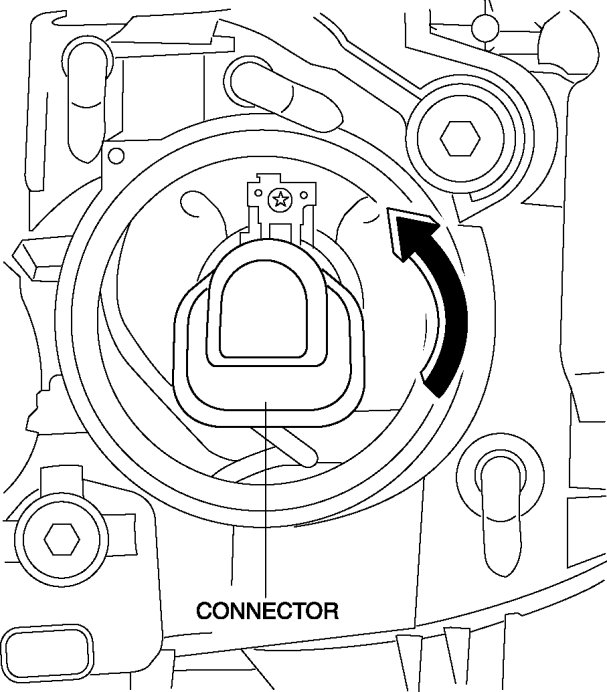

9. Rotate the connector in the direction of the arrow shown in the figure to remove it.

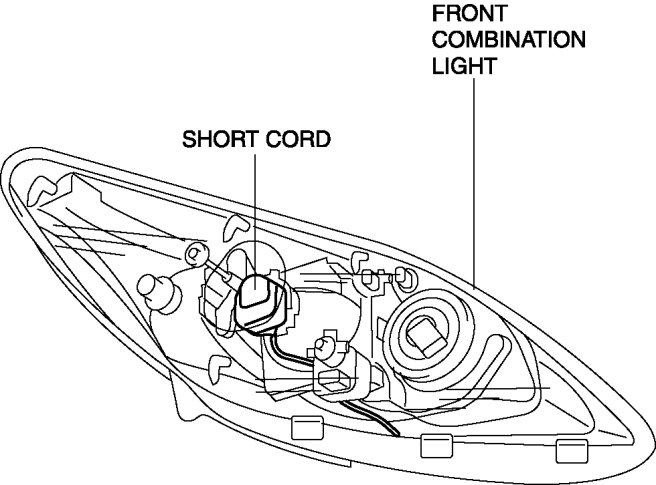

10. Remove the short cord.






11. Install in the reverse order of removal.
