Lighting and Horns: Testing and Inspection

LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE

Auto Light System

1. Connect the M-MDS (IDS) to DLC-2.

2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.

- When using the IDS (laptop PC)

1 Select the "Module Programming"
2 Select "Programmable Parameters"
3 Select menu in the BCM/GEM.

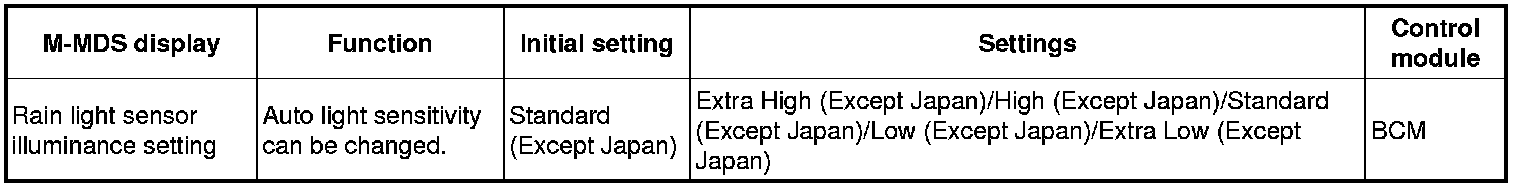

3. Select an item name, and then select option.





NOTE:
- Other than the above conditions, a "Japan Only" command is also displayed, however, do not select the command because it is for use other than in Japan.
- If the mode is set to "Extra High (Except Japan)" and "High (Except Japan)", the illumination level for illuminating the TNS and headlight increases. Therefore, the TNS and headlights illuminate when the ambient light is brighter than when the level is set to "Standard (Except Japan)". In addition, if the mode is set to "Low (Except Japan)" and "Extra Low (Except Japan)", the illumination level for illuminating the TNS and headlights decreases. Therefore, the TNS and headlights illuminate when the ambient light is lower than when the level is set to "Standard (Except Japan)".

Interior light control system

- The interior light control system is controlled by the BCM. For the interior light control system setting, refer to the personalization function setting procedure. Control System Personalization Features Setting Procedure
