Auxiliary Power Outlet: Testing and Inspection





ACCESSORY SOCKET INSPECTION

Front

1. Disconnect the negative battery cable.

2. Remove the center console box. Center Console Box Removal/Installation

3. Remove the console panel. Console Panel Removal/Installation

4. Remove the accessory socket. Service and Repair

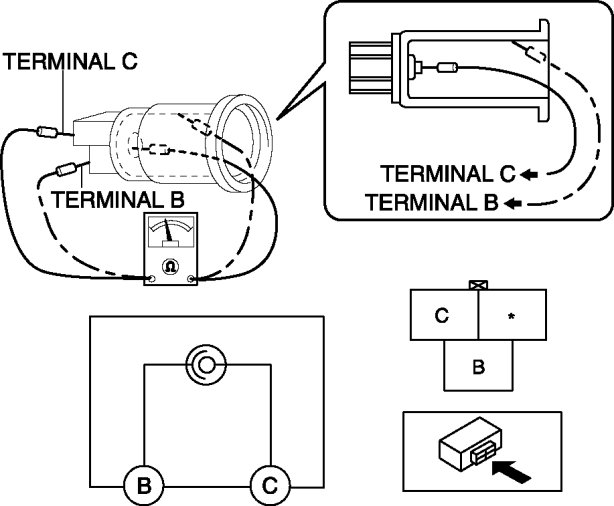

5. Connect the tester as shown in the figure and verify that there is continuity.






- If the continuity cannot be verified, replace the accessory socket.

Front

1. Disconnect the negative battery cable.

2. Remove the accessory socket. Service and Repair

3. Connect the tester as shown in the figure and verify that there is continuity.






- If the continuity cannot be verified, replace the accessory socket.
