Air Fuel Ratio (A/F) Sensor Removal/Installation





AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [MZR 2.5]

WARNING:
- A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the plug hole plate. Service and Repair

4. Disconnect the ventilation hose which is connected to the cylinder head cover.

5. Disconnect the A/F sensor connector.

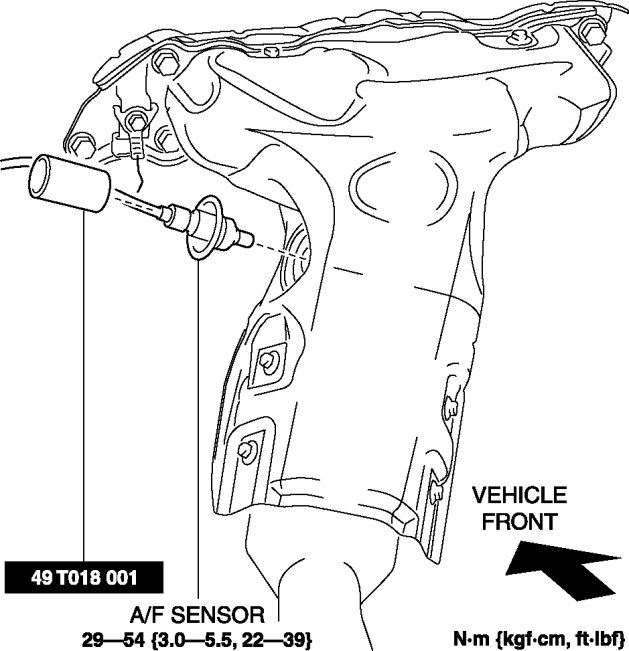

6. Remove the A/F sensor using the SST.






7. Install in the reverse order of removal.
