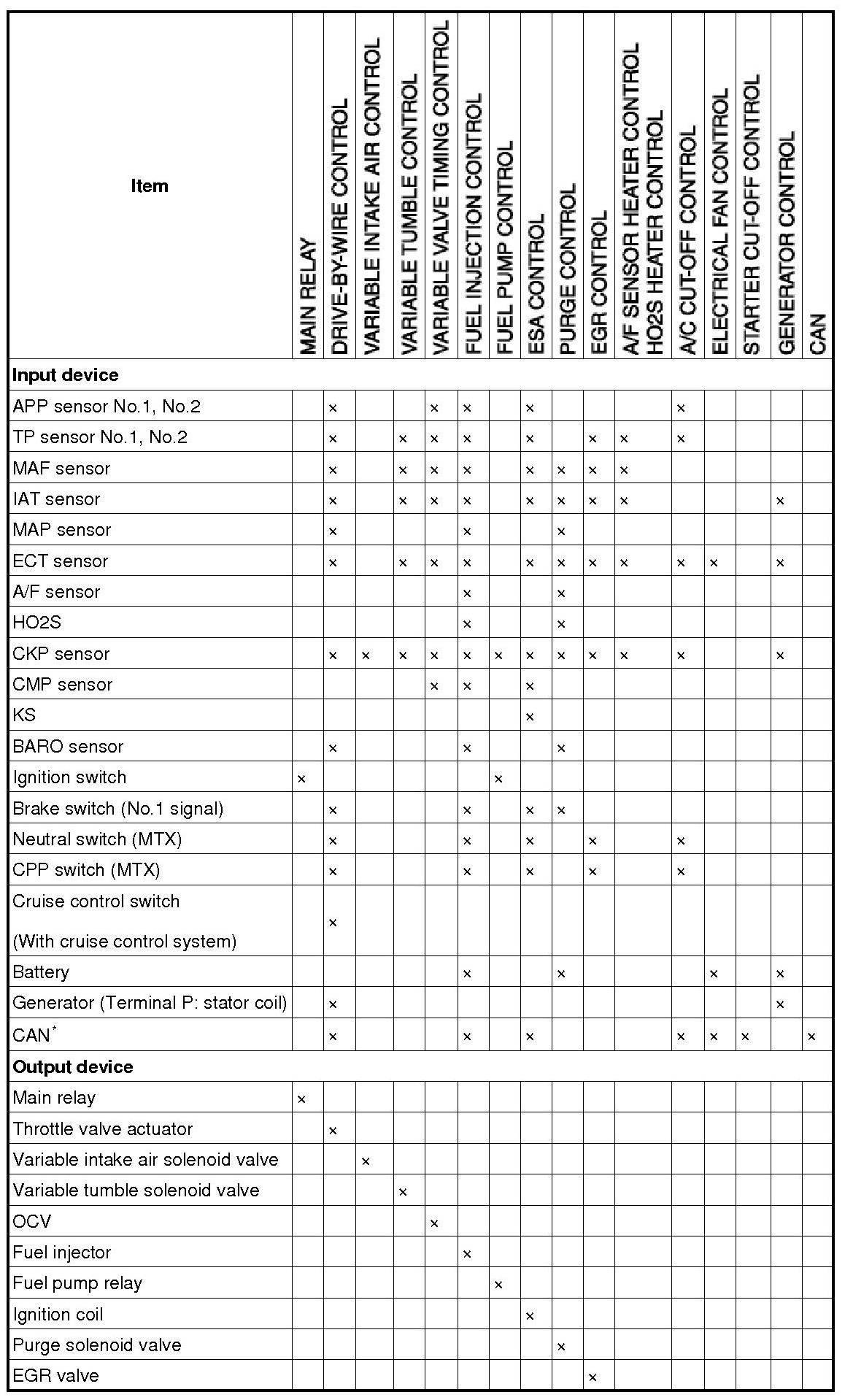

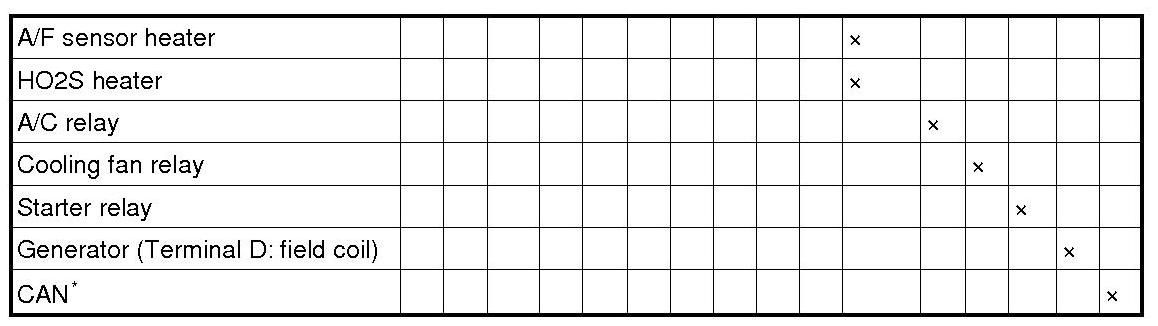

Control System Device And Control Relationship Chart
CONTROL SYSTEM DEVICE AND CONTROL RELATIONSHIP CHART [MZR 2.5] -
Each control system and their related input and output parts are as follows.
x: Applicable
*
For details on the CAN-related parts, refer to the block diagram for each control item.
