Evaporative Emission Control Canister: Testing and Inspection

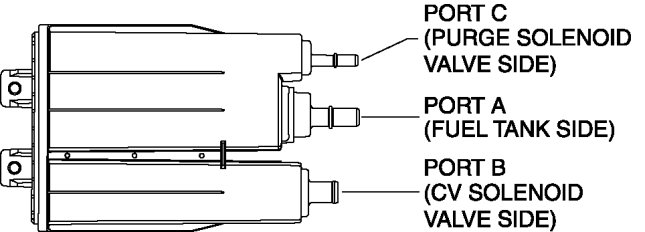

CHARCOAL CANISTER INSPECTION [MZR 2.5]

Leakage Inspection

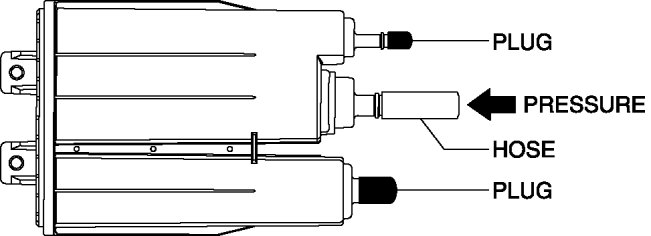

1. Perform the following procedures:

- Assemble the hose used for inspection to port A.
- Cover ports B and C with the caps.





CAUTION:
- Do not apply a pressure 20 kPa {0.2 kgf/cm2, 2.9 psi} or more to the charcoal canister for 1 min. or more. Doing so will damage the charcoal canister.

2. Apply pressure (19.6 kPa {0.2 kgf/cm2, 2.84 psi}) through the hose, and verify that air does not leak from the charcoal canister.






- If there is airflow, replace the charcoal canister. Service and Repair
- If there is no airflow, perform the following "Airflow Inspection".

Airflow Inspection

1. Perform the following procedure to verify the charcoal canister airflow.

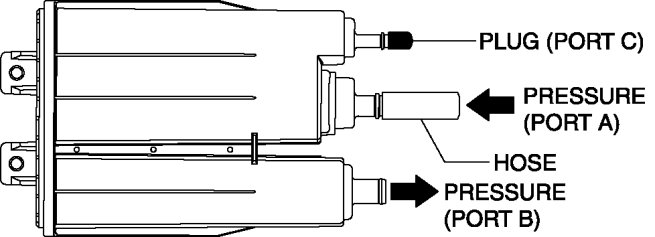

Between port A and port B
- Plug the port C.





- Apply a pressure of 19.6 kPa {0.2 kgf/cm2, 2.84 psi} to port A.
- Verify that there is airflow from port B.

- If there is no airflow, replace the charcoal canister. Service and Repair

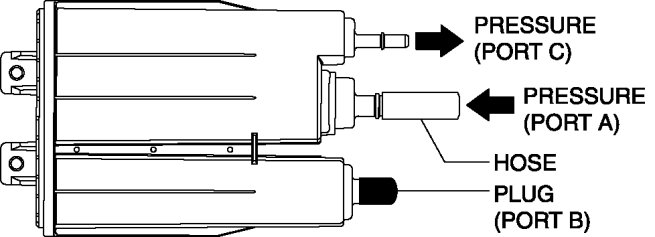

Between port A and port C
- Plug the port B.





- Apply a pressure of 19.6 kPa {0.2 kgf/cm2, 2.84 psi} to port A.
- Verify that there is airflow from port C.

- If there is no airflow, replace the charcoal canister. Service and Repair

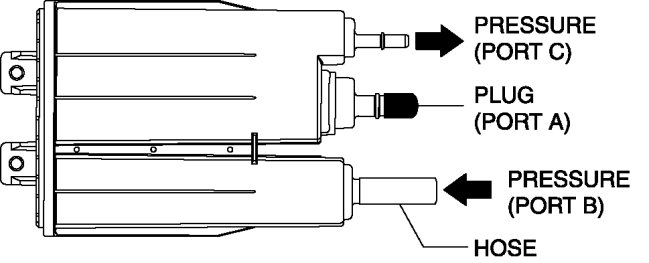

Between port B and port C
- Plug the port A.





- Apply a pressure of 19.6 kPa {0.2 kgf/cm2, 2.84 psi} to port B.
- Verify that there is airflow from port C.

- If there is no airflow, replace the charcoal canister. Service and Repair
