Front Suspension - Lower Arm Removal/Installation

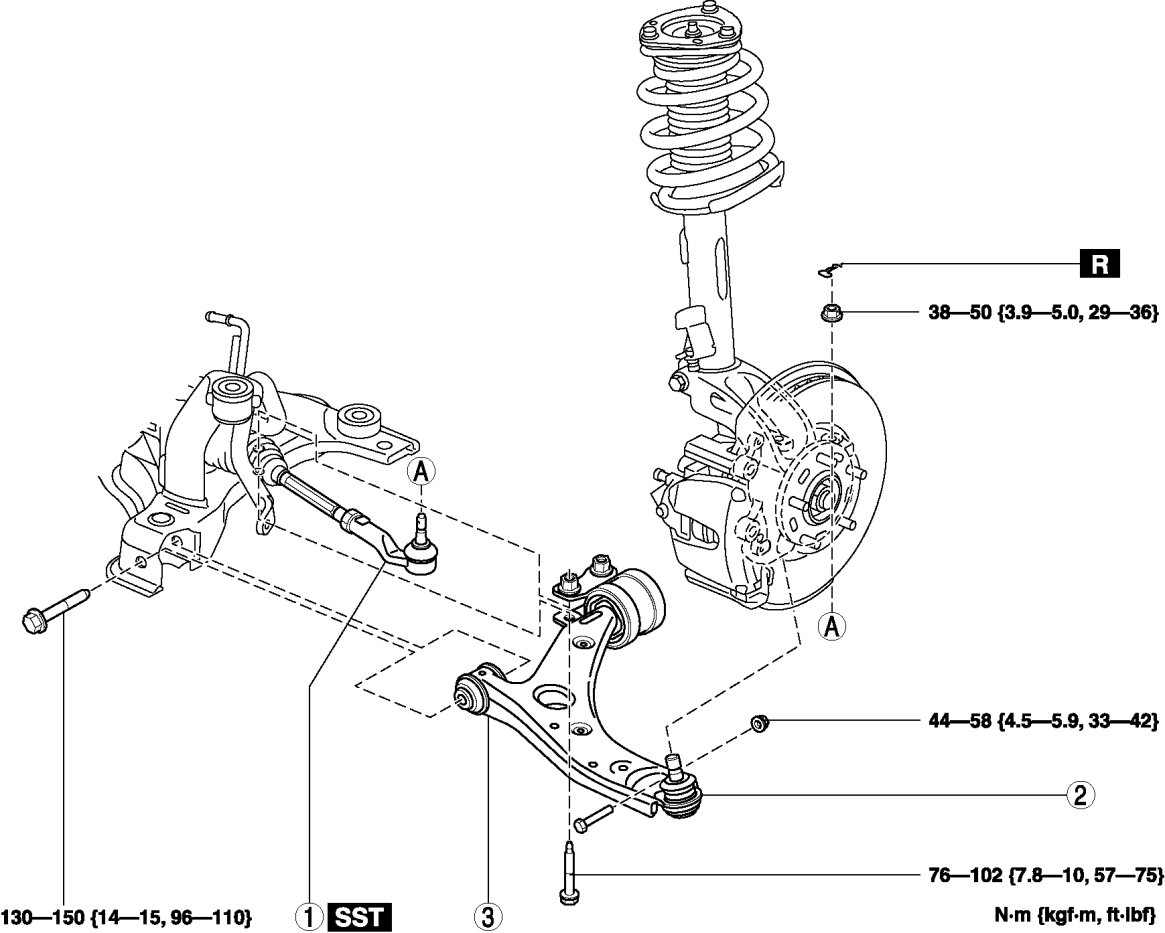

FRONT LOWER ARM REMOVAL/INSTALLATION

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

3. Inspect the wheel alignment and adjust it if necessary. Front Wheel Alignment

Front Lower Arm Ball Joint Installation Note

NOTE:
- The bolt insertion direction can be either front or rear of the vehicle, however, keep the insertion direction the same on both the left and right sides of the vehicle.
