Foreword





FOREWORD [FS5A-EL]

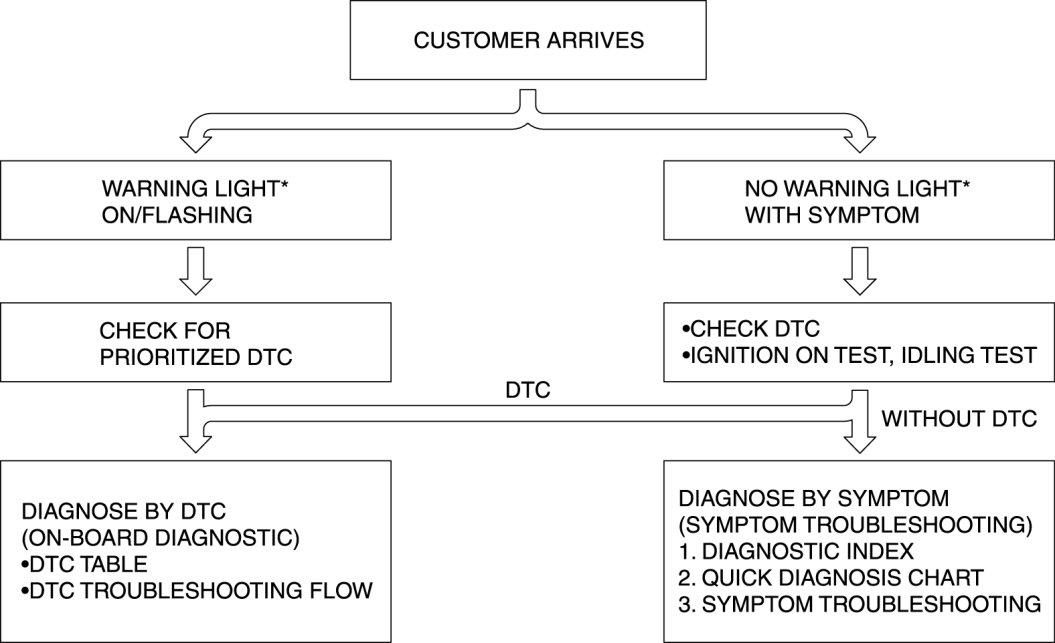

- When the customer reports a vehicle malfunction, inspect the check engine light indication, automatic transaxle warning light flash, and diagnostic trouble code (DTC), then diagnose the malfunction according to following flowchart.

- If a DTC exists, diagnose the applicable DTC inspection. Automatic Transmission/Transaxle - DTC Table
- If a DTC does not exist, the check engine light does not illuminate and the automatic transaxle warning light illuminate, diagnose the applicable symptom troubleshooting. Symptom Troubleshooting Item Table

NOTE:
- If a tire of a different diameter from the standard tire is installed, the TCM determines that the driving mode is the AAS mode, and may change to a different shift timing from the normal timing.





*
Check engine light, automatic transaxle warning light
