Front Door Window Motor: Service and Repair





POWER WINDOW MOTOR REMOVAL/INSTALLATION

Front door

1. Half open the door glass.

2. Disconnect the negative battery cable.

3. Remove the following parts:
a. Inner garnish Inner Garnish Removal/Installation

b. Front door trim Front Door Trim Removal/Installation

c. Front door speaker Front Door Speaker Removal/Installation

CAUTION:

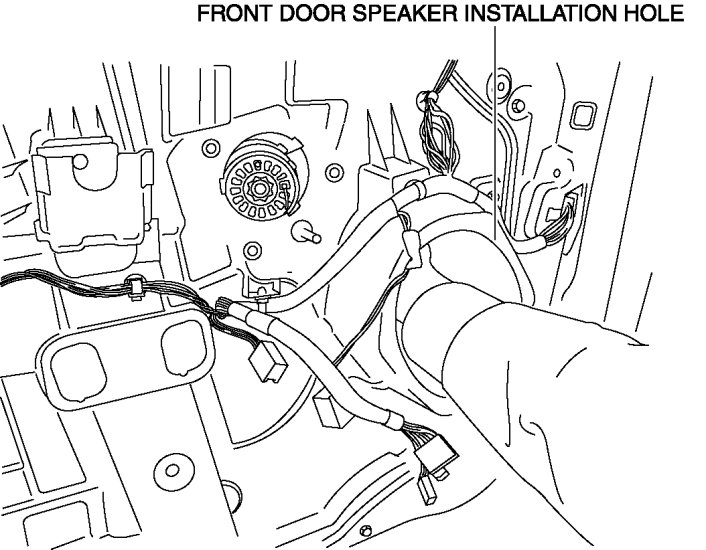

- When removing the power wind motor, insert a hand through the front door speaker installation hole, and lower it to the bottommost position while supporting the front door glass with your hand. Otherwise, the glass may fall off.

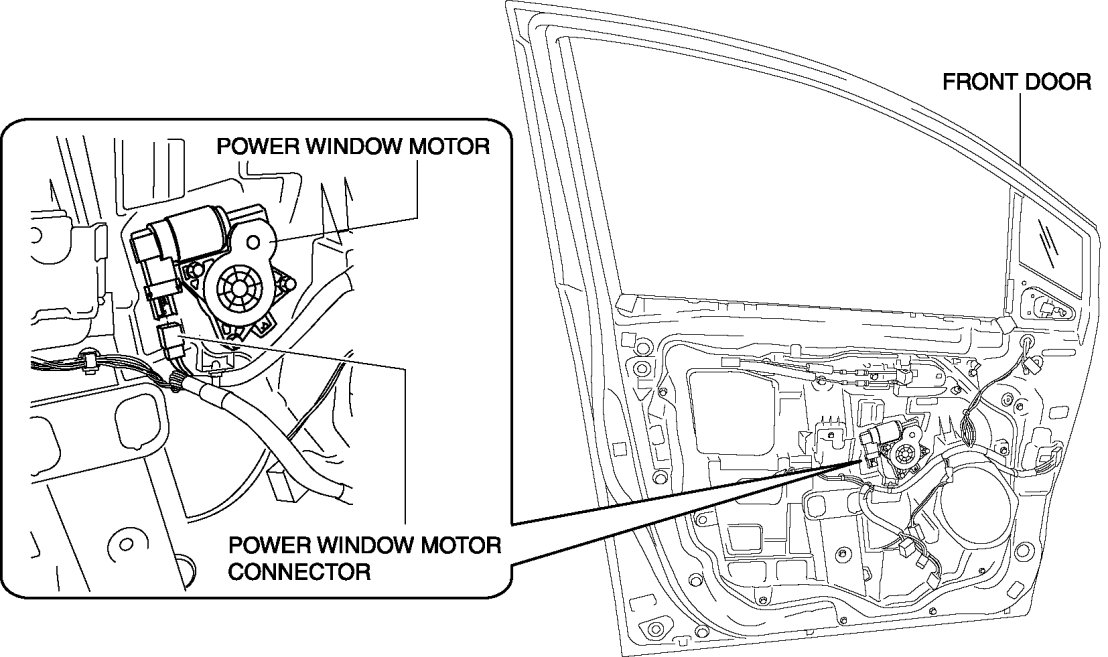

4. Disconnect the power window motor connector.

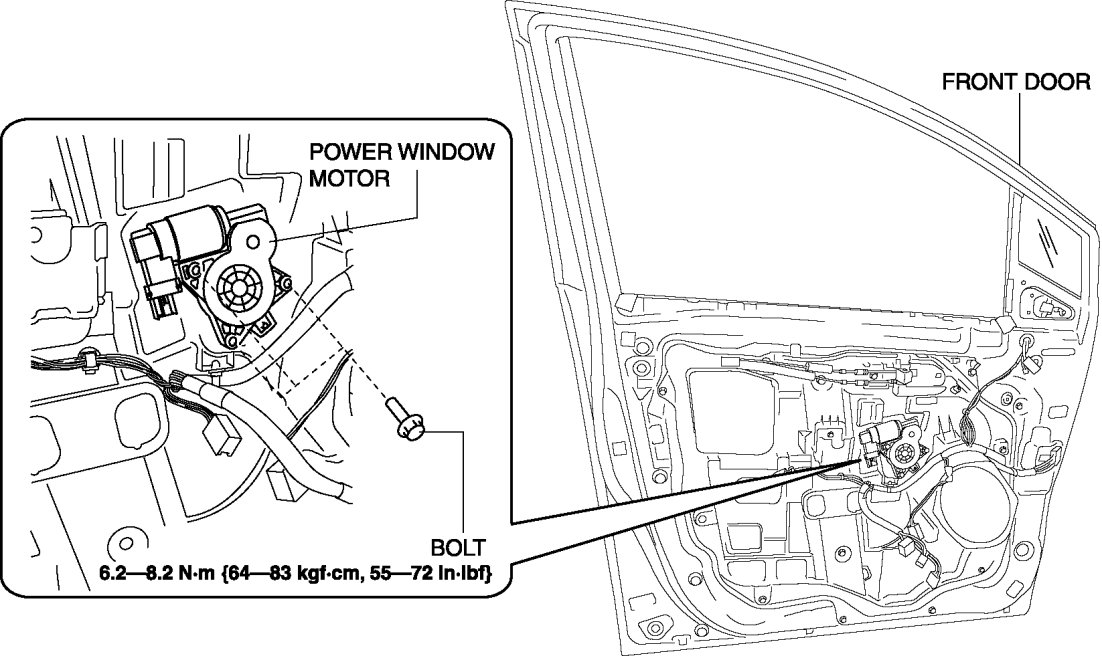

5. Remove the power window motor bolts.






6. Remove the power window motor from the power window regulator drum.

7. Install in the reverse order of removal.
