Rear Door Window Motor: Testing and Inspection





POWER WINDOW MOTOR INSPECTION

Rear Side

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Side door garnish Side Door Garnish Removal/Installation

b. Rear side trim Rear Side Trim Removal/Installation

c. Sliding door trim Service and Repair

d. Rear power window motor Service and Repair

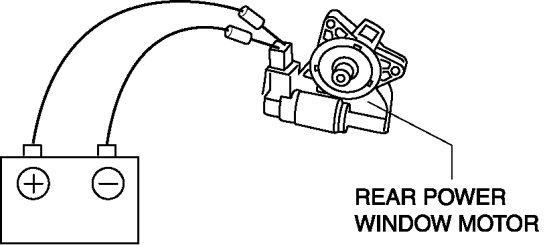

3. Apply battery positive voltage and connect the ground to the rear power window motor terminals, and then inspect the rear power window motor operation.

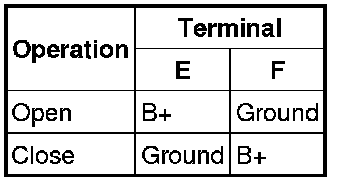

- If not as indicated in the table, replace the rear power window motor. Service and Repair
