Front Door Quarter Glass Removal/Installation





FRONT DOOR QUARTER GLASS REMOVAL/INSTALLATION

1. Fully open the front door glass.

2. Disconnect the negative battery cable.

3. Remove the inner garnish. Inner Garnish Removal/Installation

4. Remove the front door trim. Front Door Trim Removal/Installation

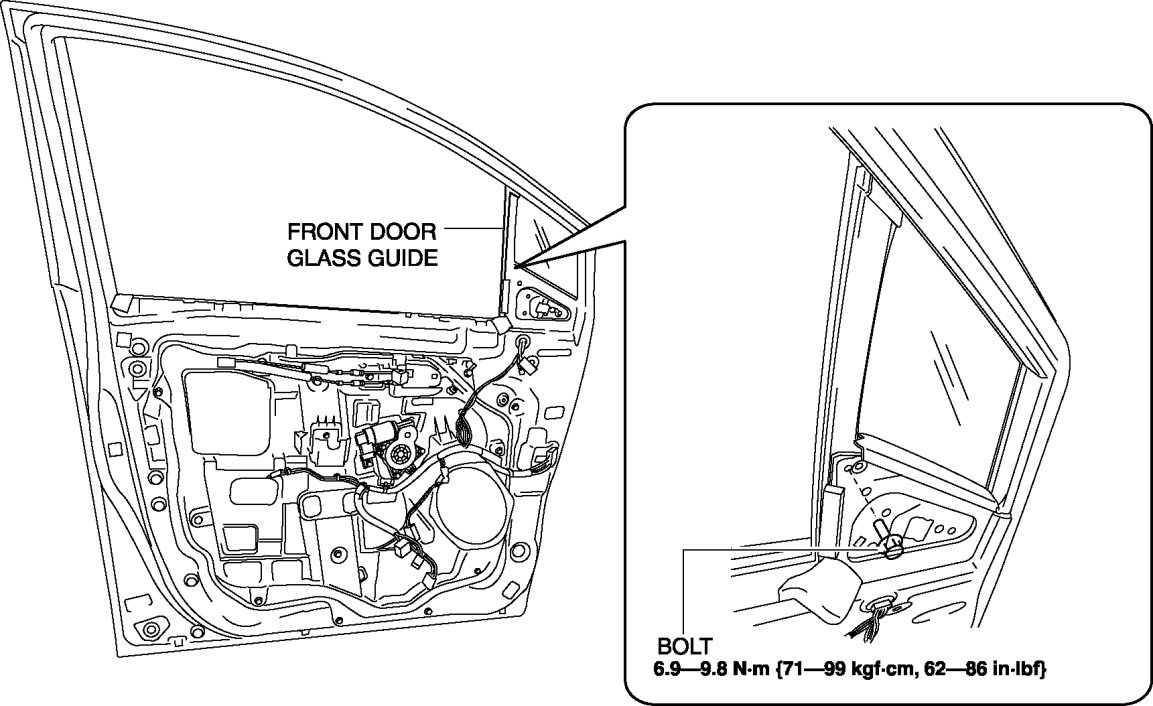

5. Remove the bolt.

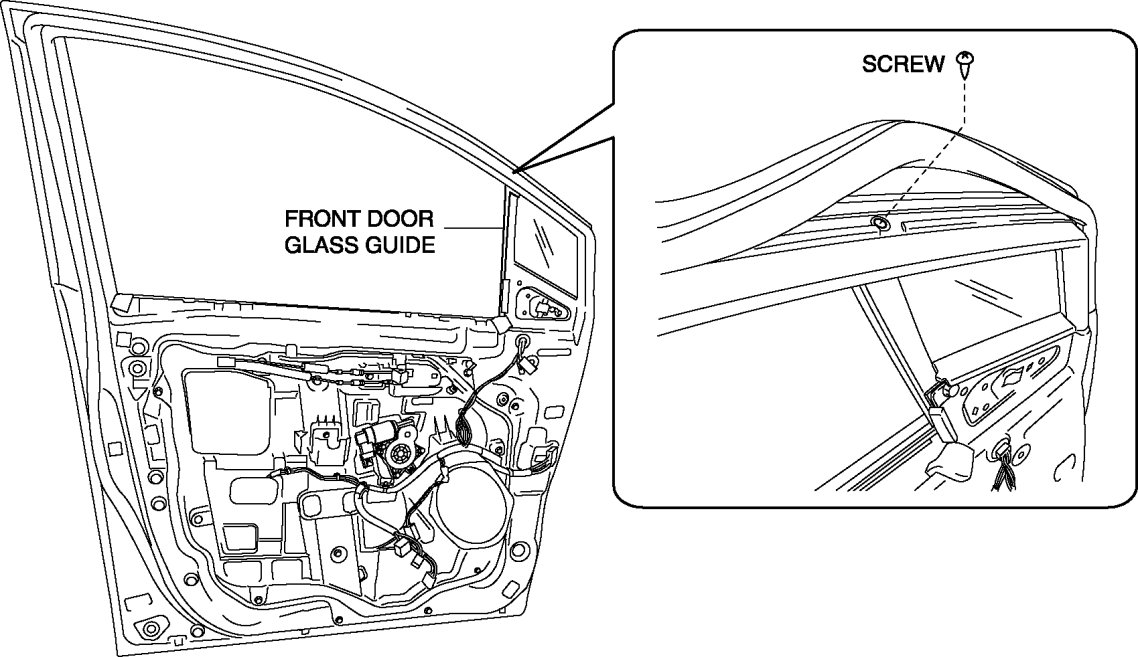

6. Remove the screw.

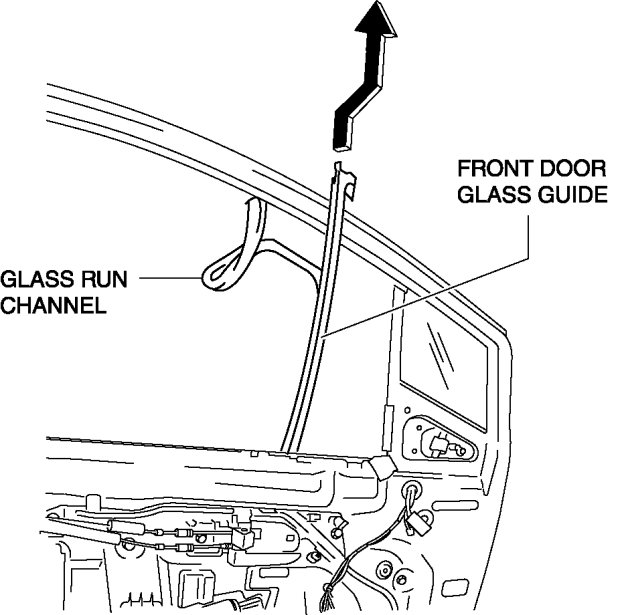

7. Remove the front door glass guide and glass run channel as a single unit.

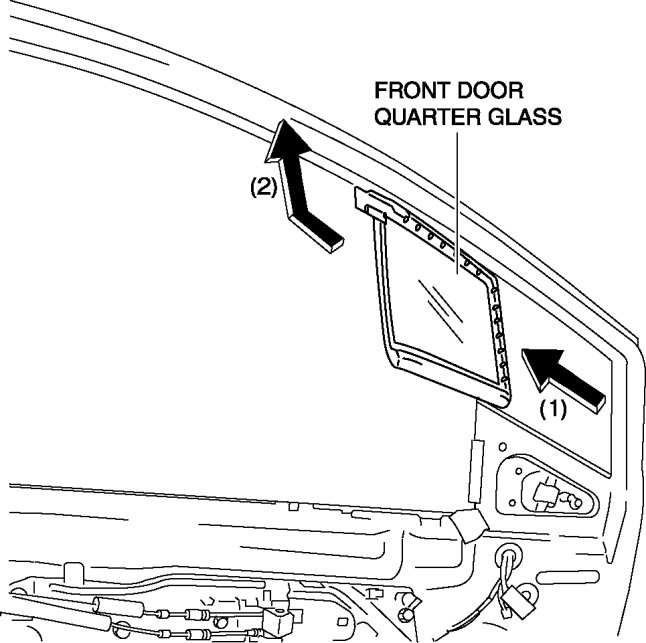

8. Remove the front door quarter glass.






9. Install in the reverse order of removal.
