Front Door Window Regulator: Service and Repair





FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION

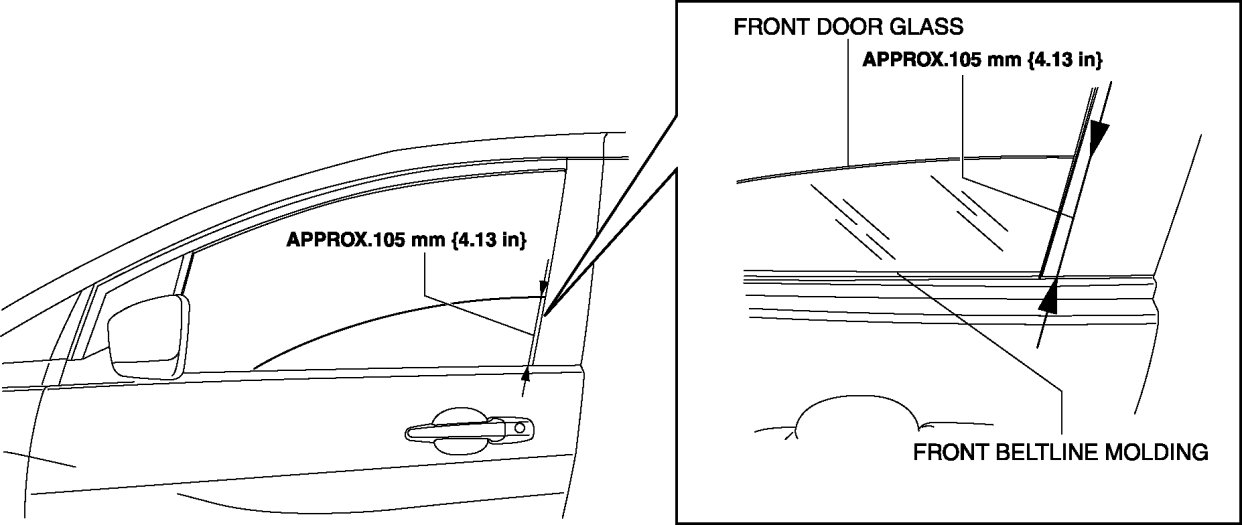

1. To access the glass installation bolts, adjust the position of the front door glass so that the height of the front door glass towards the rear is approx. 105 mm {4.13 in}.






2. Disconnect the negative battery cable.

3. Remove the following parts:
a. Inner garnish Inner Garnish Removal/Installation

b. Front door trim Front Door Trim Removal/Installation

c. Front door speaker Front Door Speaker Removal/Installation

d. Front door glass Front Door Glass Removal/Installation

e. Front power window motor Service and Repair

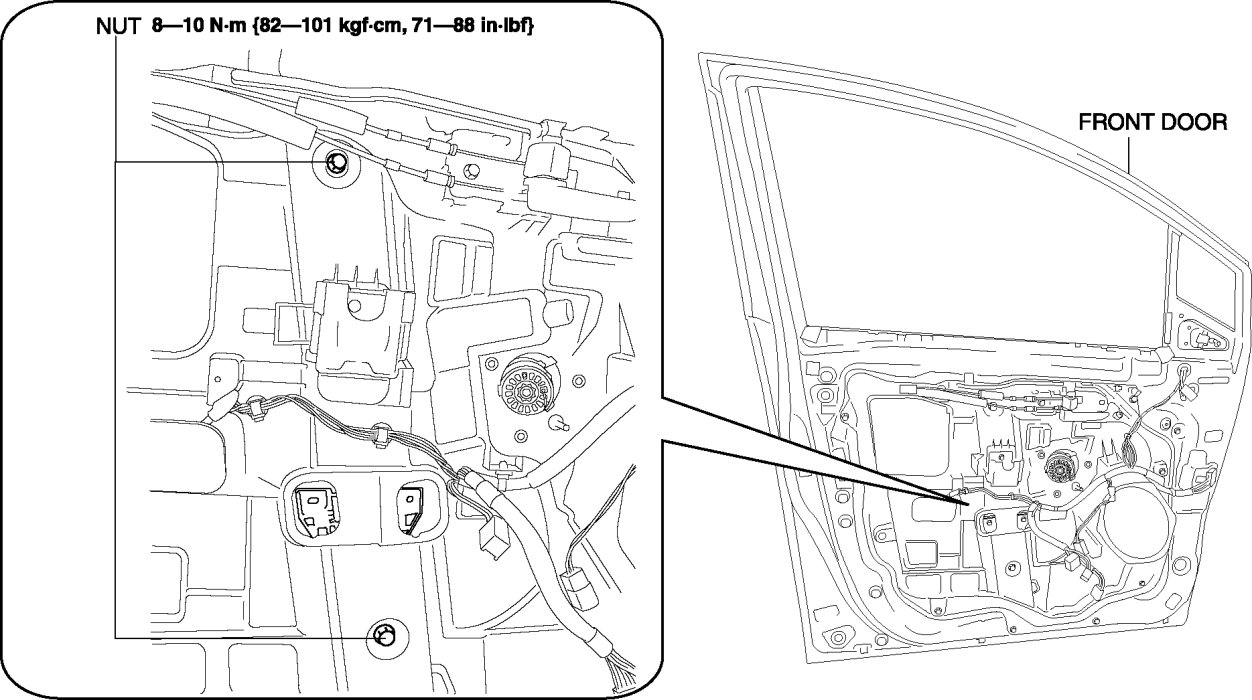

4. Remove the nuts.

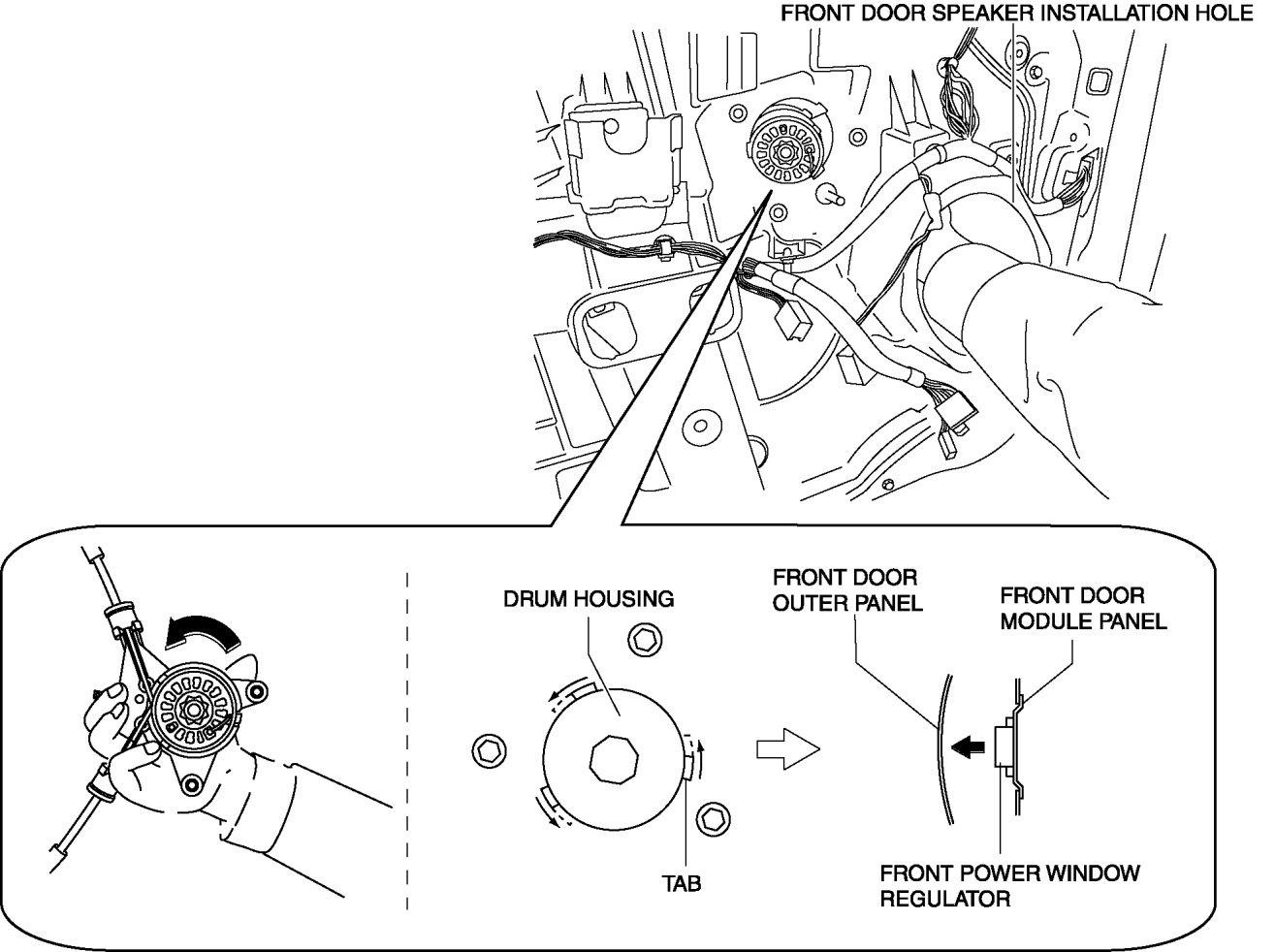

5. Insert your hand through the speaker installation hole, rotate the drum housing in the direction shown in the figure and disengage the tabs.

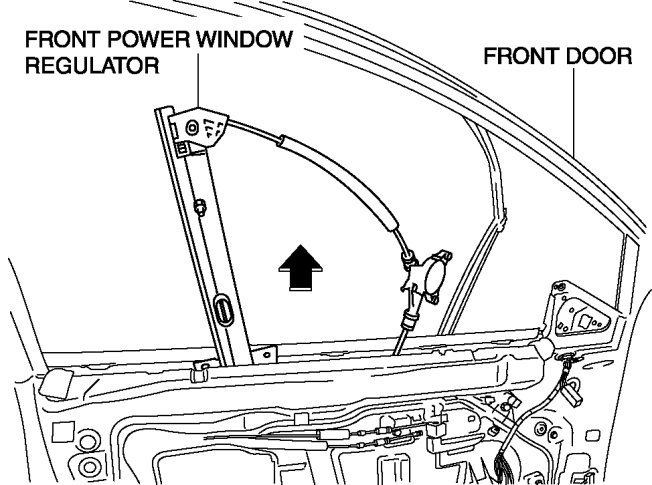

6. Remove the front power window regulator in the direction of the arrow shown in the figure.






7. Install in the reverse order of removal.

CAUTION:
- Make sure the cable does not unspool from the drum housing when installing.
