Rear Door Window Regulator: Service and Repair





REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION

1. Fully open the sliding door glass.

2. Disconnect the negative battery cable.

3. Remove the following parts:
a. Side door garnish Side Door Garnish Removal/Installation

b. Rear side trim Rear Side Trim Removal/Installation

c. Sliding door trim Service and Repair

d. Sliding door quarter glass Sliding Door Quarter Glass Removal/Installation

e. Sliding door glass Sliding Door Glass Removal/Installation

f. Rear power window motor Service and Repair

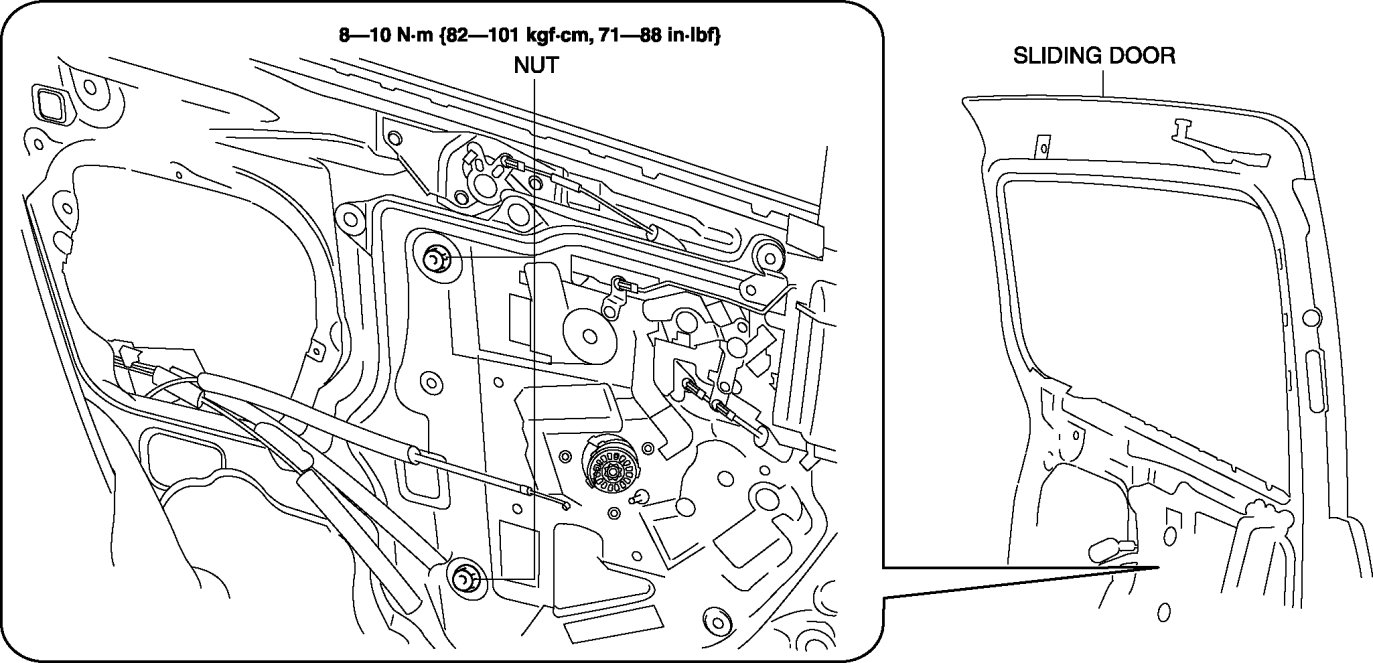

4. Remove the nuts.

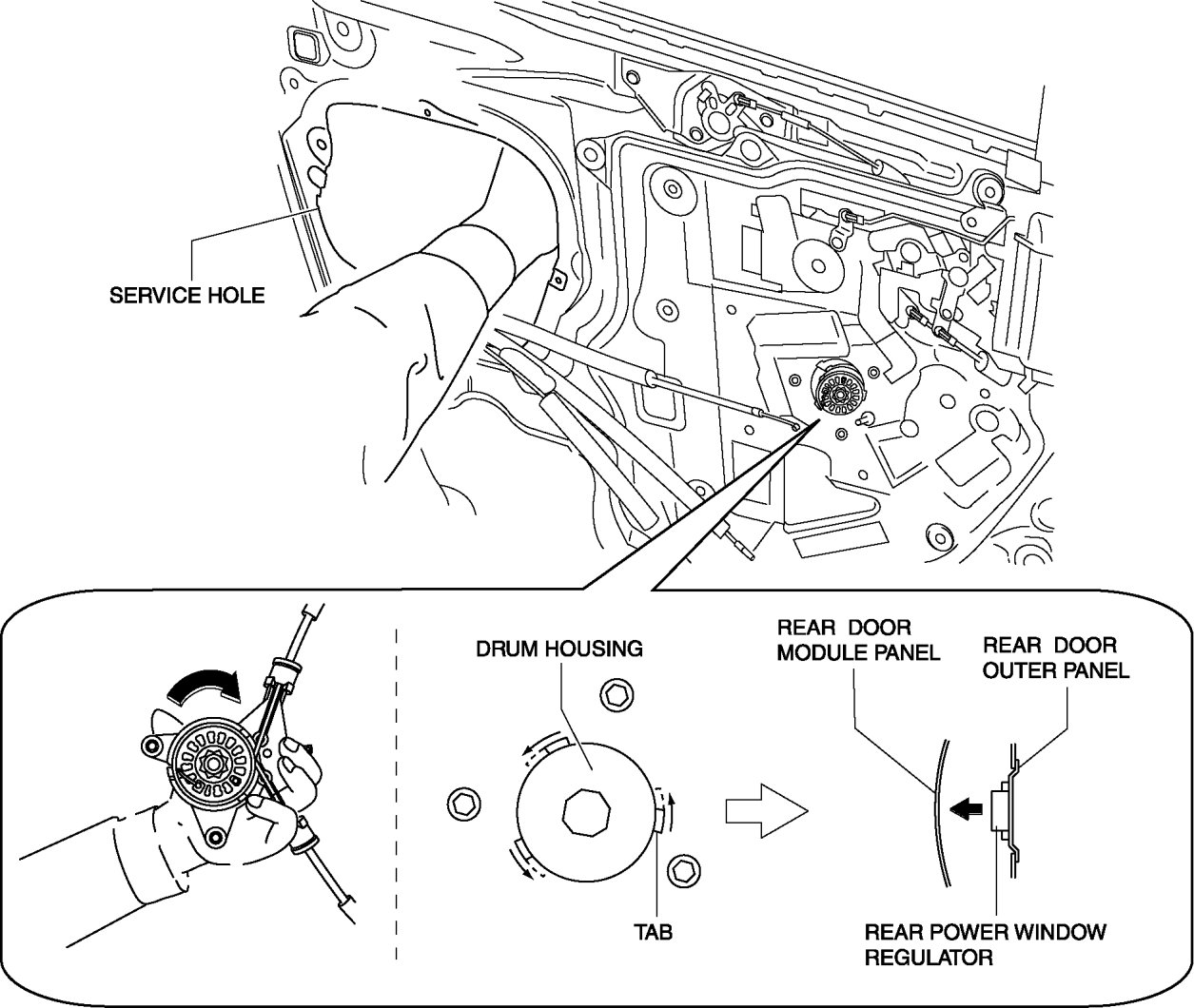

5. Insert a hand through the service hole, rotate the drum housing in the direction shown in the figure and disengage the tabs from the rear door module panel.






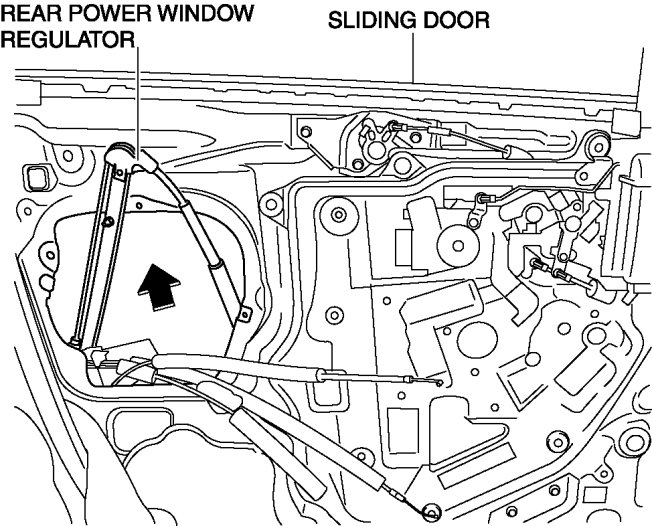

6. Take the rear power window regulator out through the service hole.






7. Install in the reverse order of removal.

CAUTION:
- Make sure the cable does not unspool from the drum housing when installing.
