Washer Fluid Level Switch: Testing and Inspection
WASHER FLUID-LEVEL SENSOR INSPECTION 1.
Disconnect the negative battery cable.
2.
Remove the front bumper.
Removal and Replacement 3.
Remove the washer tank.
Service and Repair 4.

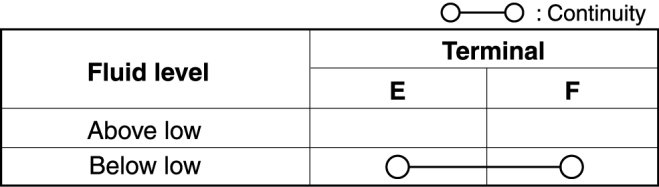

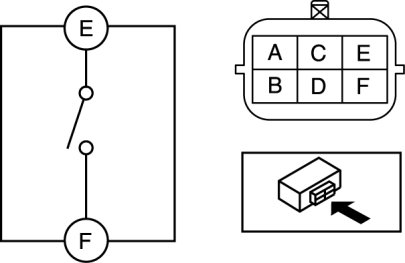

Verify that continuity between the washer fluid-level sensor terminals is as indicated in the table.
-
If not as specified, replace the washer fluid-level sensor.
Service and Repair
