Windshield Washer Hose Removal/Installation





WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the hood insulator. Overhaul

3. Slightly bend back the front mudguard (RH). Mudguard Removal/Installation

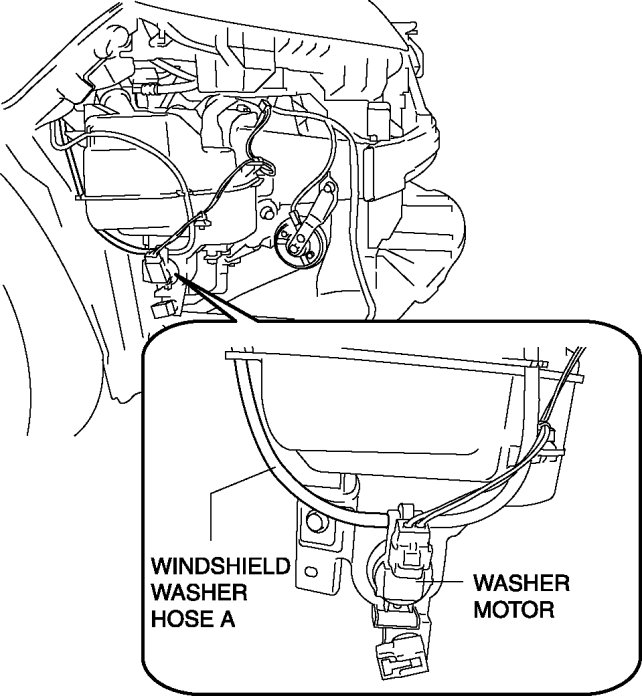

4. Disconnect windshield washer hose A from the windshield washer motor.

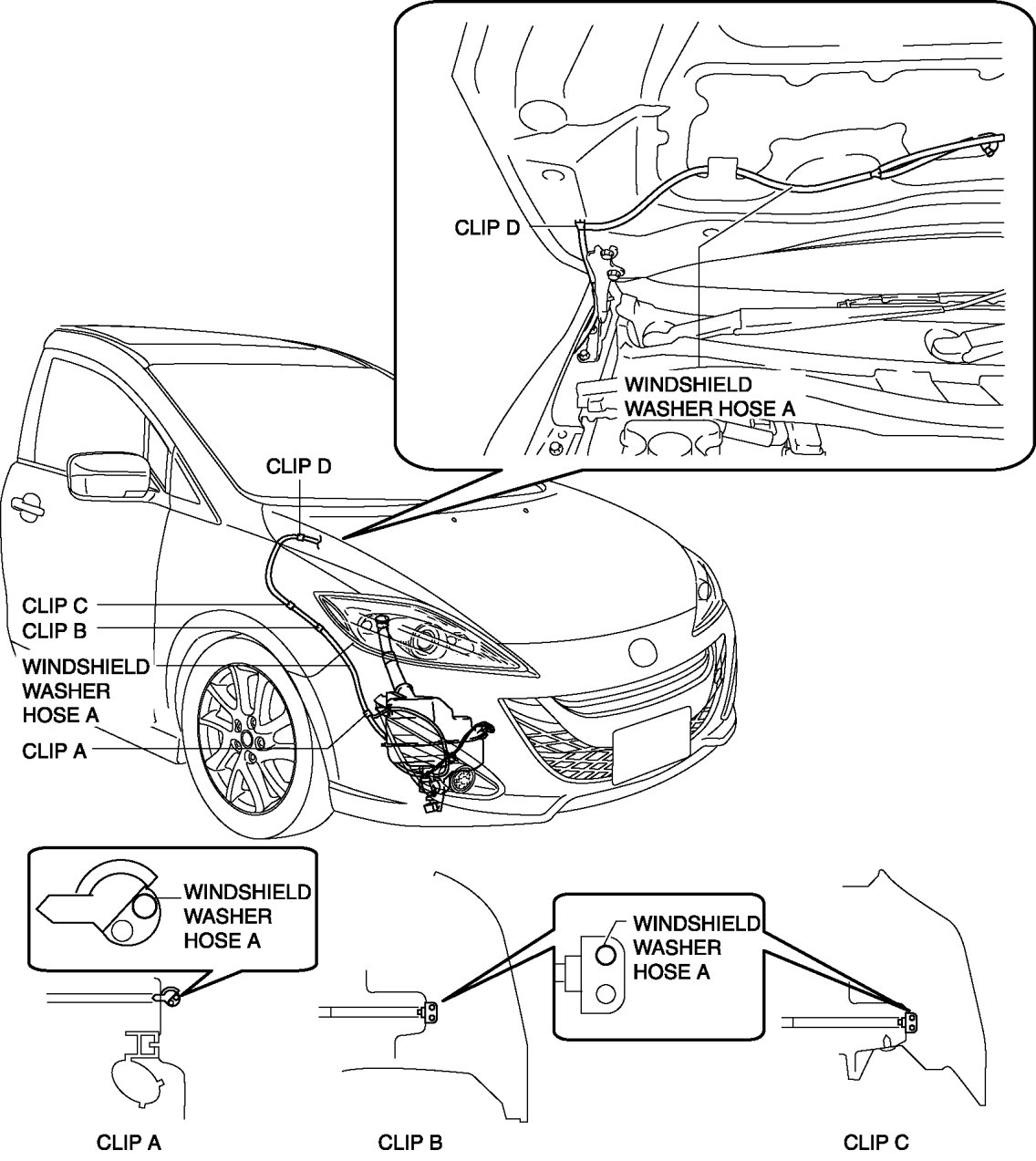

5. Remove windshield washer hose A from clips A, B, C, and D.

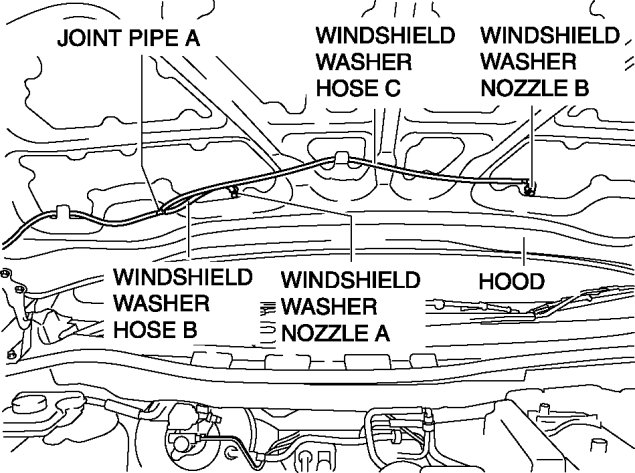

6. Disconnect windshield washer hose B from washer nozzle A.






7. Disconnect windshield washer hose C from washer nozzle B.

8. Disconnect joint pipe A and remove windshield washer hose A, B and C.

9. Install in the reverse order of removal.
