Windshield Washer Nozzle Removal/Installation





WINDSHIELD WASHER NOZZLE REMOVAL/INSTALLATION

NOTE:
- Injection direction cannot be adjusted because the windshield washer nozzle is a stationary type.

1. Disconnect the negative battery cable.

2. Remove the hood insulator. Overhaul

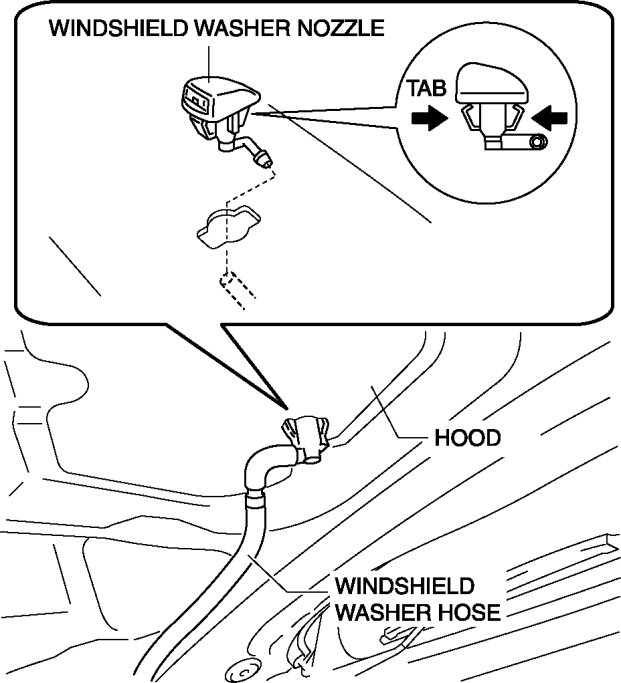

3. Disconnect the windshield washer hose from the windshield washer nozzle.

4. Press the tabs of the windshield washer nozzle.

5. Press out the windshield washer nozzle from the hood.






6. Install in the reverse order of removal.
