Rear Wiper Motor Inspection





REAR WIPER MOTOR INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Rear wiper arm and blade Rear Wiper Arm And Blade Removal/Installation

b. Levitate upper trim

c. Levitate side trim

d. Levitate lower trim

3. Disconnect the rear wiper motor connector.

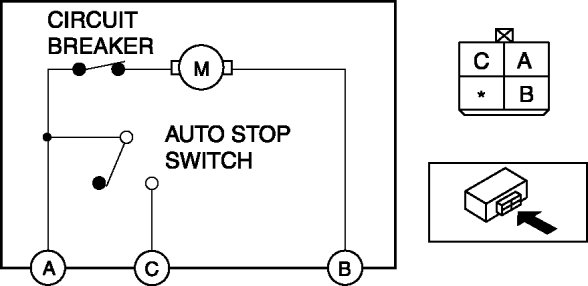

4. Apply battery positive voltage to rear wiper motor connector terminal B, and connect terminals A and C to the ground.

5. Verify that the rear wiper motor operates smoothly.






- If there is any malfunction, replace the rear wiper motor. Rear Wiper Motor Removal/Installation

6. Disconnect the ground from rear wiper motor connector terminal A while the rear wipers are operating, then verify that the rear wipers stop at the auto-stop position.

- If there is any malfunction, replace the rear wiper motor. Rear Wiper Motor Removal/Installation
