Windshield Wiper Motor Inspection





WINDSHIELD WIPER MOTOR INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Windshield wiper arm and blade Windshield Wiper Arm And Blade Removal/Installation

b. Front fender molding Cowl Grille Removal/Installation

c. Cowl grille Cowl Grille Removal/Installation

d. Center cowl grille Center Cowl Grille Removal/Installation

3. Disconnect windshield wiper motor connector.

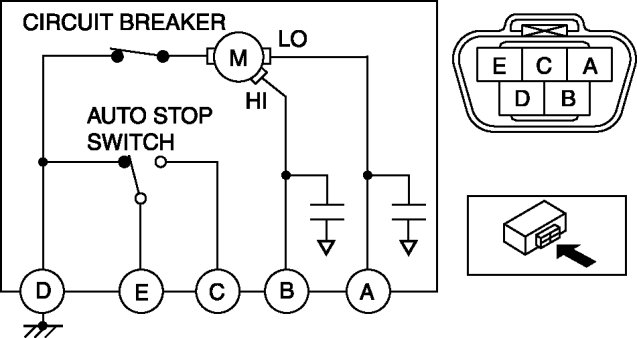

4. Connect the battery positive voltage to windshield wiper motor terminal A or B, connect terminal D to the ground, then verify the windshield wiper operation.

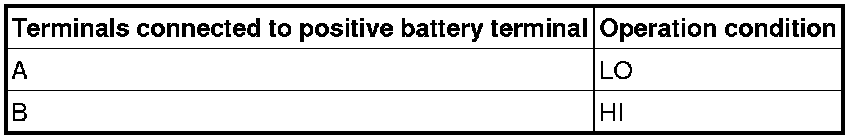

5. Verify that the windshield wiper operates as indicated in the following table.






- If operation is not as indicated in the table, replace the windshield wiper motor. Windshield Wiper Motor Removal/Installation Overhaul





6. Disconnect battery positive voltage from terminal A or B during wiper operation.

7. Verify that the wipers do not stop in auto stop condition.

8. Connect windshield wiper motor terminals A and E, and apply battery positive voltage to terminal C.

9. Verify that the windshield wipers operate at low speed again and they are at the auto-stop position.

- If there is any malfunction, replace the windshield wiper motor. Windshield Wiper Motor Removal/Installation Overhaul
