Antenna: Testing and Inspection
GLASS ANTENNA INSPECTION 1.
Disconnect the negative battery cable.
2.
Disconnect the
antenna amplifier connector B.
Service and Repair 3.

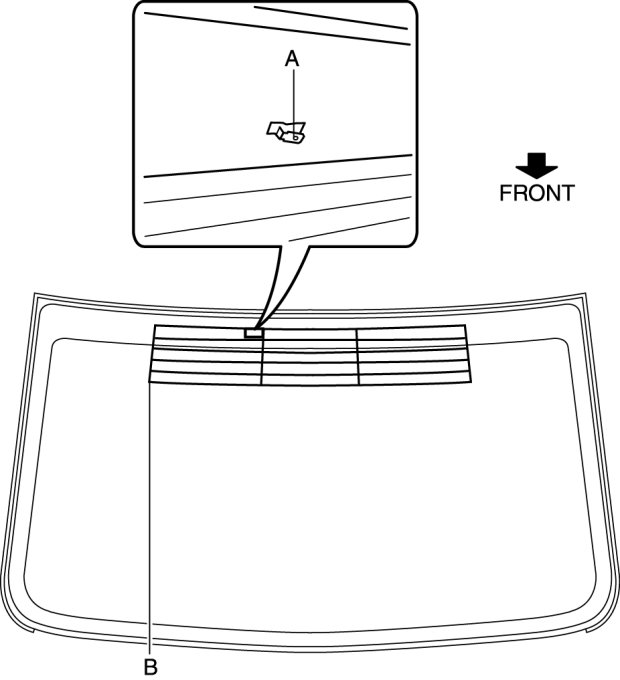

Inspect the glass antenna for damage visually.
4.

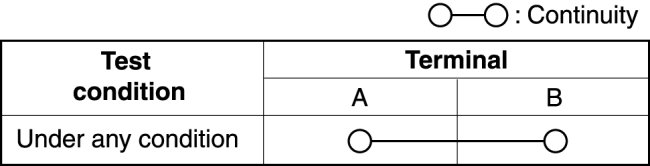

Inspect for continuity between the glass antenna terminals using an ohmmeter.
-
If not as specified, repair the glass antenna.
Service and Repair
