Power Trunk / Liftgate Lock Actuator: Testing and Inspection

TRUNK LID RELEASE ACTUATOR INSPECTION

1. Disconnect the negative battery cable.

2. Remove the recess. Recess Removal/Installation

3. Remove the trunk lid trim.

4. Remove the trunk lid latch and release actuator. Service and Repair

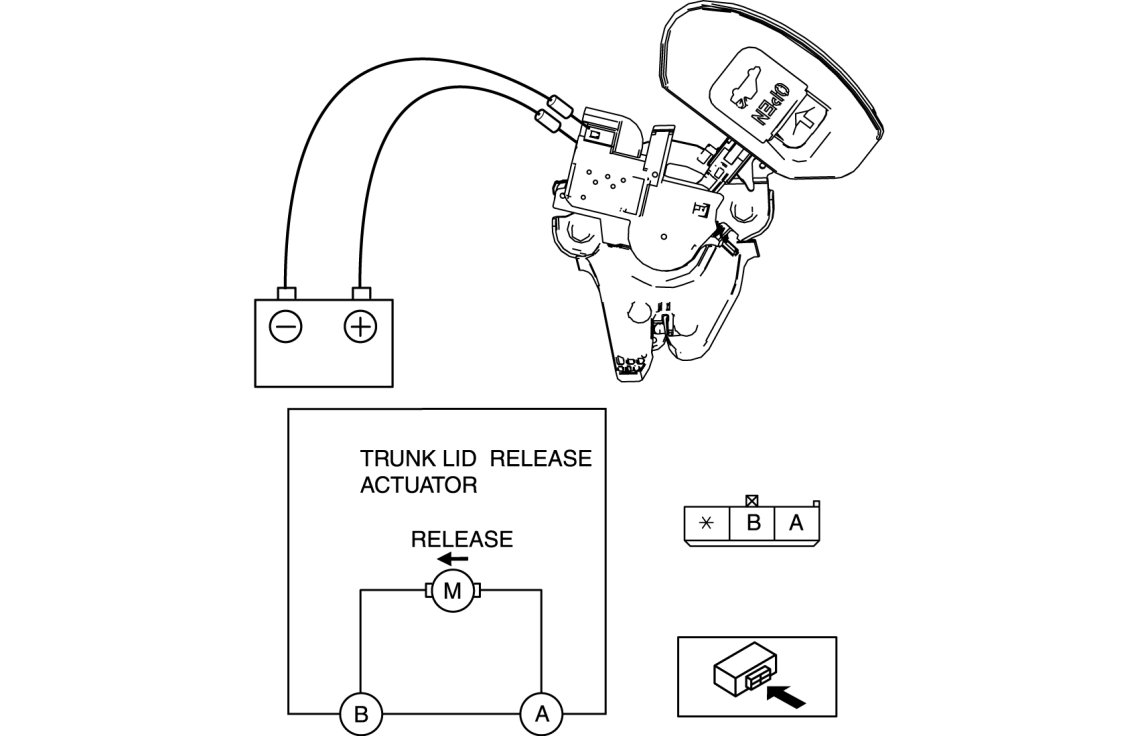

5. Apply battery positive voltage and connect the ground to each terminal, and then verify the operation.

- If not as indicated in the table, replace the trunk lid latch and release actuator.
