EVAPORATOR TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER]

1. Set the fan speed MAX HI.

2. Set the temperature control at MAX COLD (Turn the left).

3. Turn the A/C switch off.

4. Set the RECIRCULATE mode.

5. Close all doors and windows.

6. Wait for 5 min.

7. Remove the glove compartment. Service and Repair

8. Disconnect the evaporator temperature sensor connector. Manual Air Conditioner

9. Measure the temperature at the blower inlet.

10. Measure the resistance between terminals of the evaporator temperature sensor.

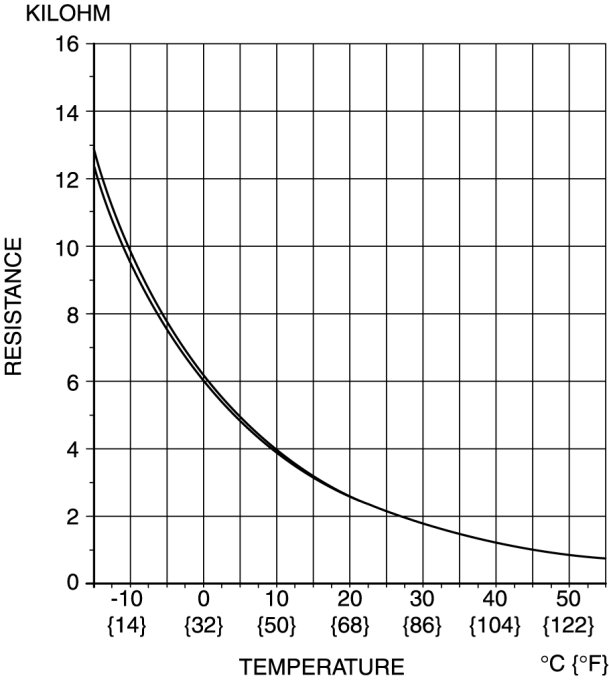

- If the resistance is not as shown in the graph, replace the evaporator temperature sensor.
