Solar Sensor: Service and Repair





SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

1. Disconnect the negative battery cable.

2. Remove the driver's side lower panel. Lower Panel Removal/Installation

CAUTION:
- After the solar radiation sensor removal, the sensor connector could fall in the dashboard making the installation difficult. Therefore, hold the rooted end of the sensor connector using a clip or similar tool to prevent it from falling.

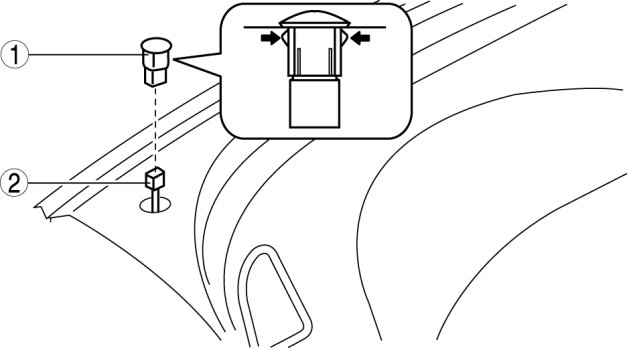

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
