Backup Lamp Switch: Service and Repair





BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION [G66M-R]

1. Disconnect the negative battery cable. Removal and Replacement

2. Remove the aerodynamic under cover No.2. Aerodynamic Under Cover No. 2 Removal/Installation

3. Drain the transaxle oil from the transaxle. Transaxle Oil Replacement

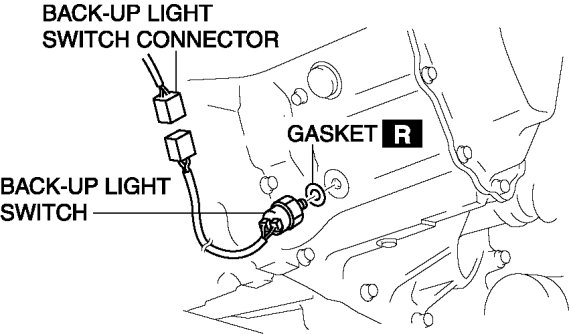

4. Disconnect the back-up light switch connector and remove the back-up light switch and gasket.






5. Install the back-up light switch (with a new gasket) to the transaxle case.

Tightening torque
- 20-29 Nm {2.1-2.9 kgf-m, 15-21 ft-lbf}

6. Connect the back-up light switch connector.

7. Add the specified amount and type of transaxle oil. Transaxle Oil Replacement

8. Install the aerodynamic under cover No.2. Aerodynamic Under Cover No. 2 Removal/Installation

9. Connect the negative battery cable. Removal and Replacement
