Headlamp Alignment Switch: Service and Repair





HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front scuff plate (driver-side) Front Scuff Plate Removal/Installation

b. Front side trim (driver-side) Front Side Trim Removal/Installation

c. Upper panel Upper Panel Removal/Installation

d. Decoration panel (driver-side) Decoration Panel Removal/Installation

e. Hood release lever Service and Repair

f. Meter hood Meter Hood Removal/Installation

g. Lower panel Lower Panel Removal/Installation

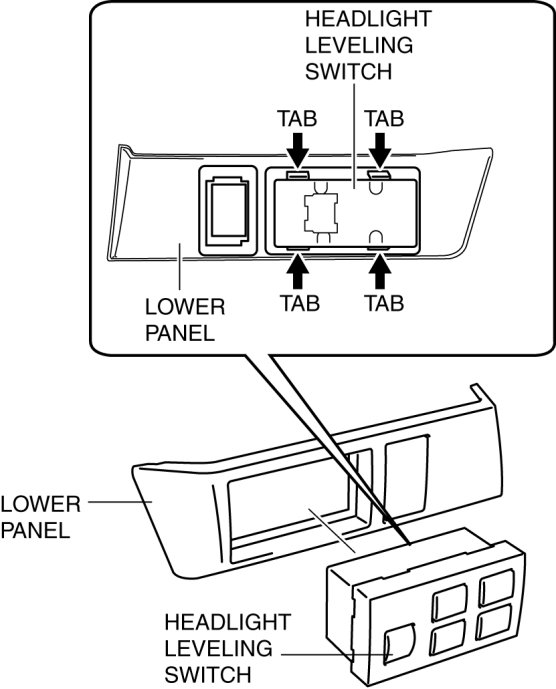

3. Remove the tabs.






4. Remove the headlight leveling switch.

5. Install in the reverse order of removal.
