Engine Control Module: Service and Repair

PCM REMOVAL/INSTALLATION [MZR 2.5]

1. Disconnect the negative battery cable. Removal and Replacement

2. Remove the battery and battery tray. Removal and Replacement

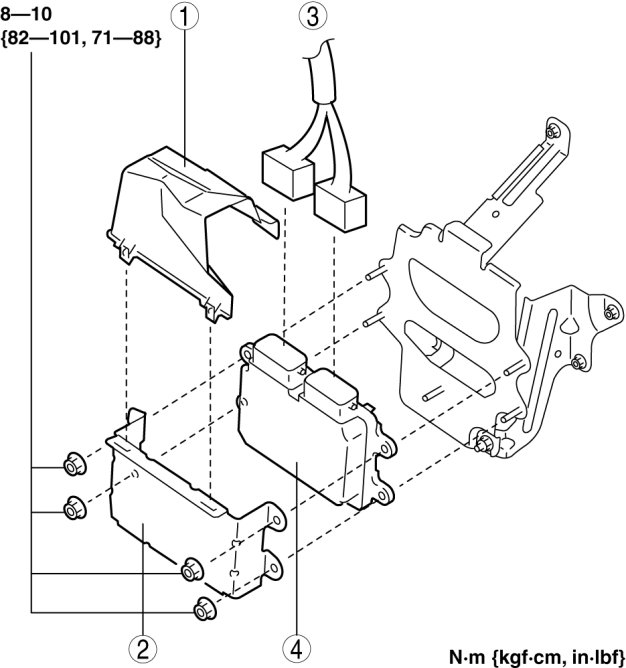

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

5. When replacing the PCM on the vehicles, perform the following:

- PCM configuration Programming and Relearning
- Immobilizer system component replacement/key addition and clearing Keyless Entry System Advanced Keyless Entry And Push Button Start System
