Harmonic Balancer - Crankshaft Pulley

Crankshaft Pulley Lock Bolt

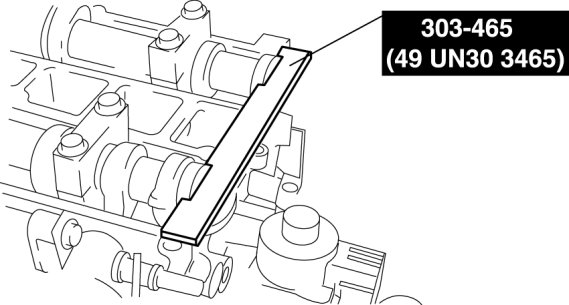

Install the SST on the camshaft as shown in the figure.






Verify that No.1 cylinder is at TDC of the compression stroke. (Position counterweight contacts SST.)

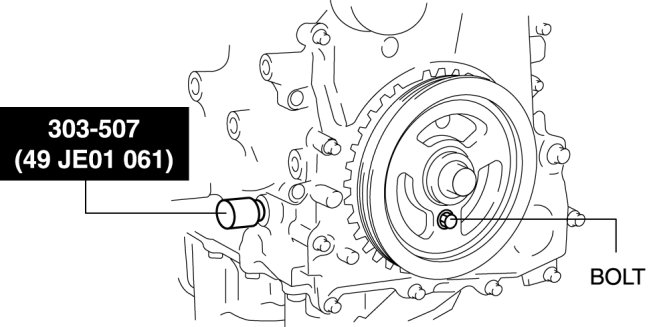

To position the crankshaft pulley, temporarily tighten it and, using a suitable bolt (M6 X 1.0), fix the crankshaft pulley to the engine front cover.

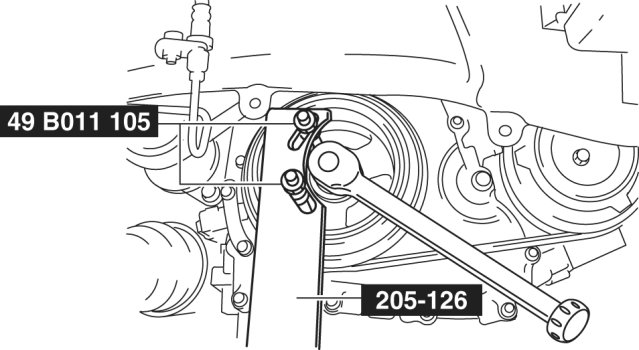

Hold the crankshaft pulley using the SSTs.






Tighten the crankshaft pulley lock bolt in the order shown in the following two steps using the SST (49 D032 316).

Tightening torque
96-104 Nm {9.8-10 kgf-m, 71-76 ft-lbf}
87-93°

Remove the M6 x 1.0 bolt.

Remove the SST from the camshaft.

Remove the SST from the cylinder block lower blind plug hole.

Rotate the crankshaft clockwise 2 turns until the TDC position.

If not aligned, loosen the crankshaft pulley lock bolt and repeat from Step 1.

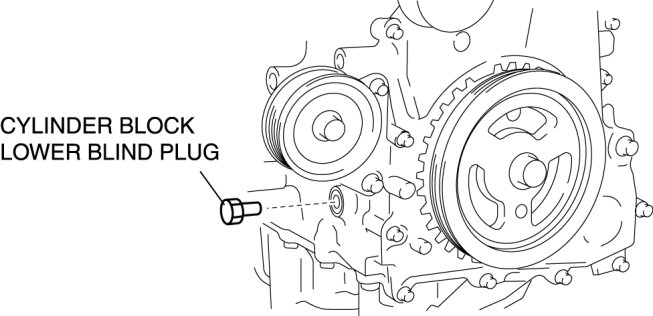

Install the cylinder block lower blind plug.





Tightening torque 18-22 Nm {1.9-2.2 kgf-m, 14-16 ft-lbf}
