Neutral Safety Switch: Testing and Inspection
NEUTRAL SWITCH INSPECTION [MZR 2.5] 1.
Disconnect the negative battery cable.
Removal and Replacement 2.
Disconnect the neutral switch connector.
Service and Repair 3.
Remove the neutral switch.
Service and Repair 4.

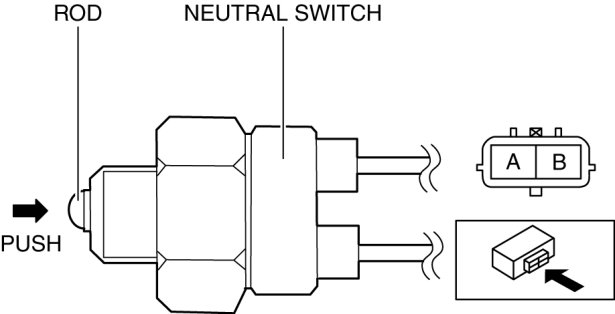

Inspect for continuity between neutral switch terminals A and B.
-
If not as specified, replace the neutral switch.
Service and RepairNeutral switch specification
