Start / Stop Switch: Testing and Inspection





PUSH BUTTON START INSPECTION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Upper panel Upper Panel Removal/Installation

b. Decoration panel Decoration Panel Removal/Installation

c. Shift knob (MTX) Service and Repair

d. Shift panel Shift Panel Removal/Installation

e. Center panel lower Center Panel Lower Removal/Installation

f. Push button start Service and Repair

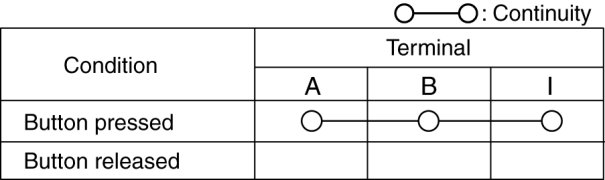

3. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the push button start.

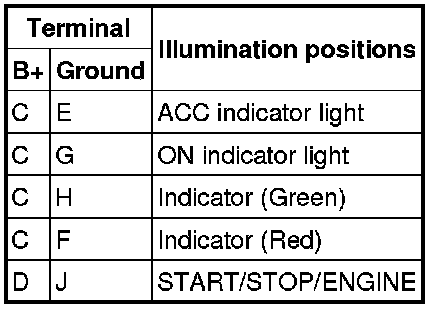

4. Apply battery positive voltage and connect the ground to the push button start terminals and verify that the LED illuminates.

- If the LEDs does not illuminate, replace the push button start.
