Key Reminder Switch: Testing and Inspection

KEY REMINDER SWITCH INSPECTION [WITHOUT ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

1. Disconnect the negative battery cable.

2. Remove the column cover. Service and Repair

3. Disconnect the key reminder switch connector.

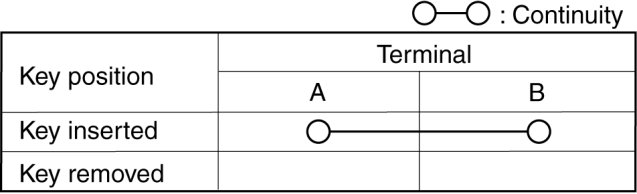

4. Verify that the continuity between the key reminder switch terminals is as indicated in the table.

- If not as indicated in the table, replace the key reminder switch.
