Clutch Release Collar Inspection

CLUTCH RELEASE COLLAR INSPECTION [G66M-R]

CAUTION:
- Cleaning the clutch release collar with cleaning fluids or a steam cleaner can wash the grease out of the sealed bearing.

1. Refer to CLUTCH UNIT REMOVAL/INSTALLATION to remove the clutch release collar. Service and Repair

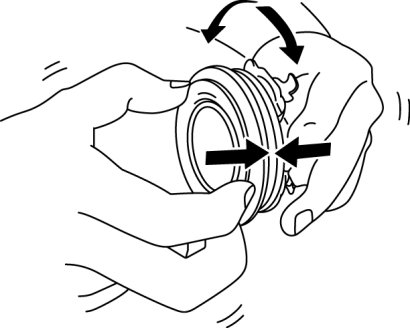

2. Turn the collar while applying force in the axial direction.

- If the collar sticks or has excessive resistance, replace the clutch release collar. Service and Repair
