Gear Sensor/Switch: Service and Repair

NEUTRAL SWITCH REMOVAL/INSTALLATION [G66M-R]

1. Disconnect the negative battery cable. Removal and Replacement

2. Remove the battery and battery tray. Removal and Replacement

3. Remove the aerodynamic under cover No.2. Aerodynamic Under Cover No. 2 Removal/Installation

4. Drain the transaxle oil from the transaxle. Transaxle Oil Replacement

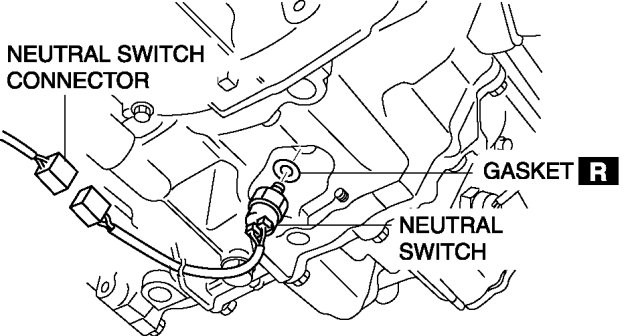

5. Disconnect the neutral switch connector and remove the neutral switch and gasket.






6. Install the neutral switch (with a new gasket) to the transaxle case.

Tightening torque
- 20-29 Nm {2.1-2.9 kgf-m, 15-21 ft-lbf}

7. Connect the neutral switch connector.

8. Install the battery and battery tray. Removal and Replacement

9. Add the specified amount and type of transaxle oil. Transaxle Oil Replacement

10. Install the aerodynamic under cover No.2. Aerodynamic Under Cover No. 2 Removal/Installation

11. Connect the negative battery cable. Removal and Replacement
