Basic Power Window System Inspection





BASIC POWER WINDOW SYSTEM INSPECTION [POWER WINDOW SYSTEMS (AUTO-OPEN/CLOSE FUNCTION)]

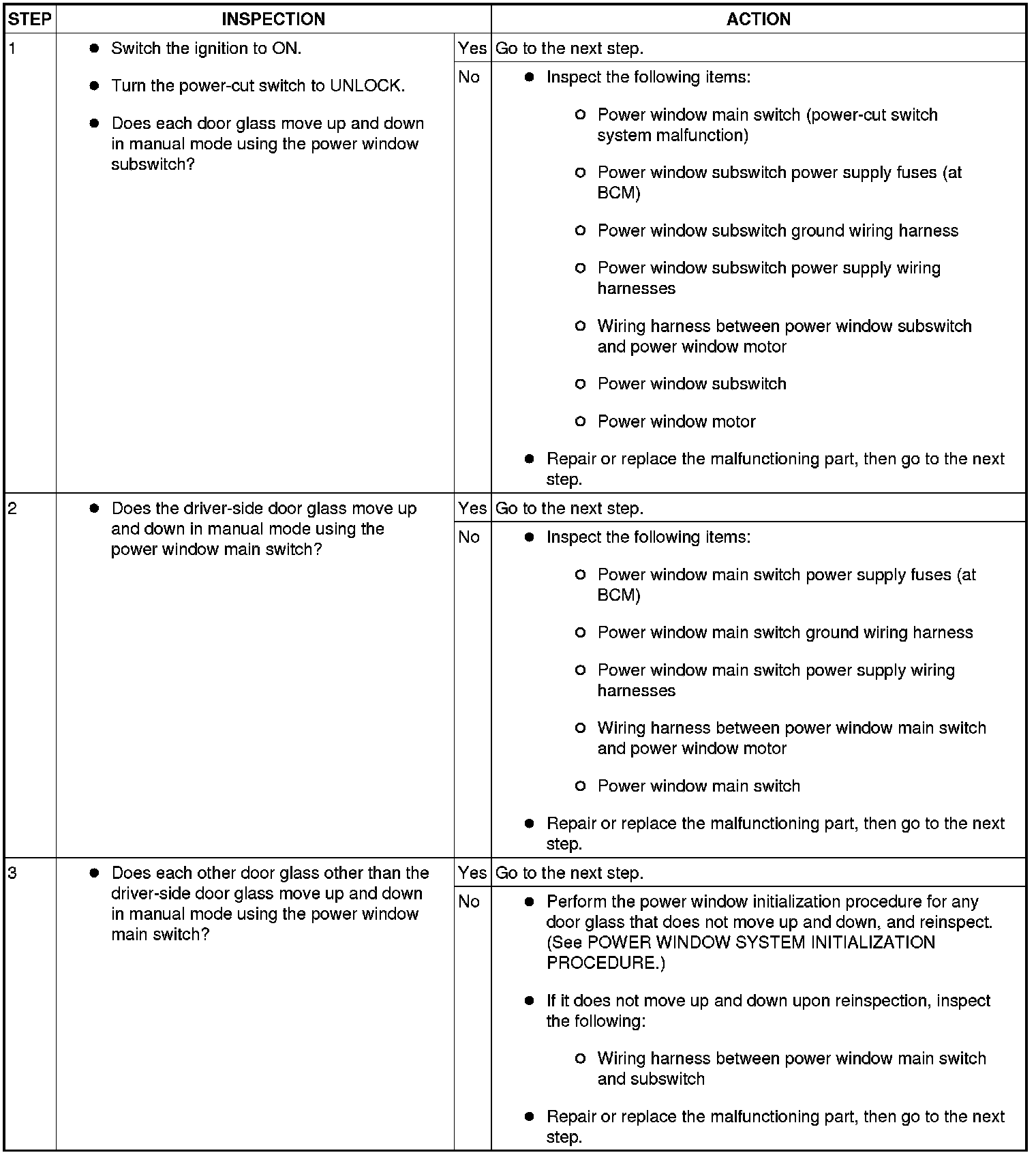

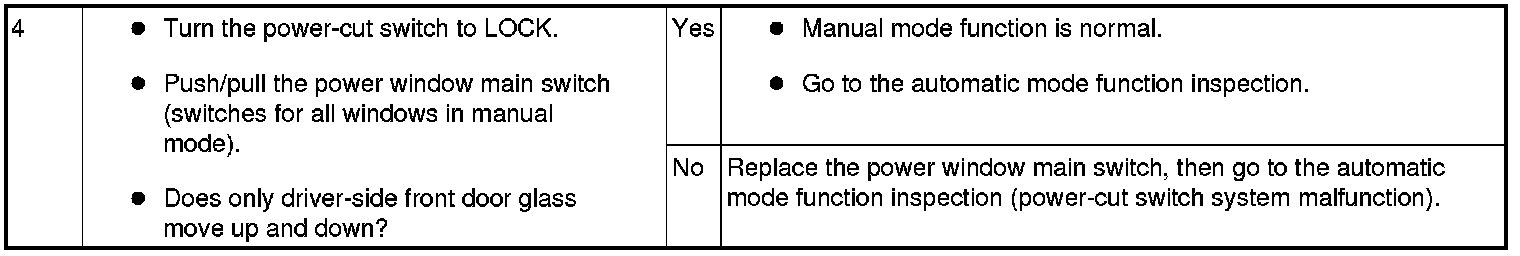

Manual Mode Function Inspection

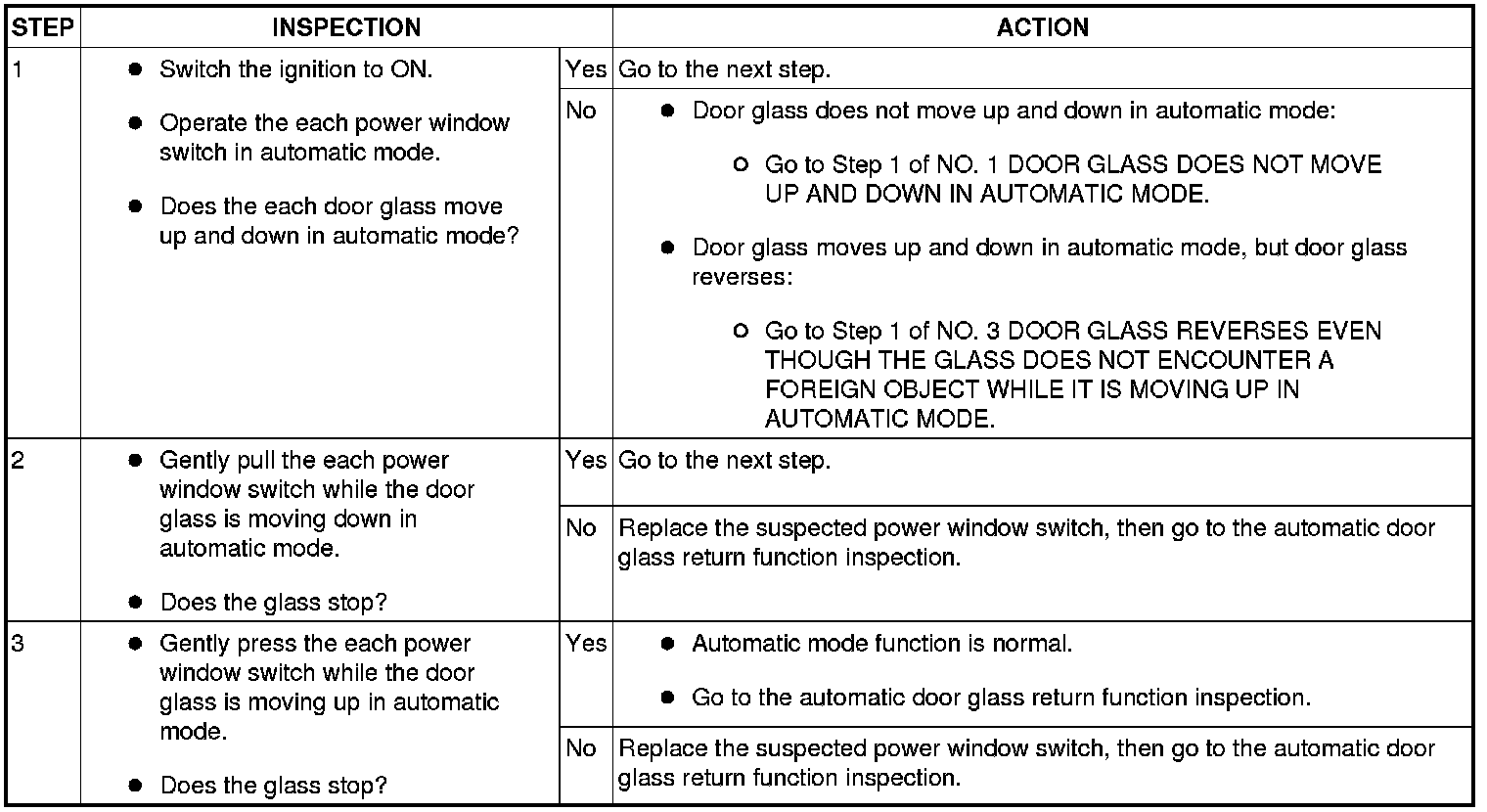

Automatic Mode Function Inspection

NOTE:
- Perform the following inspection for the power window main switch and the power window subswitches for each window.

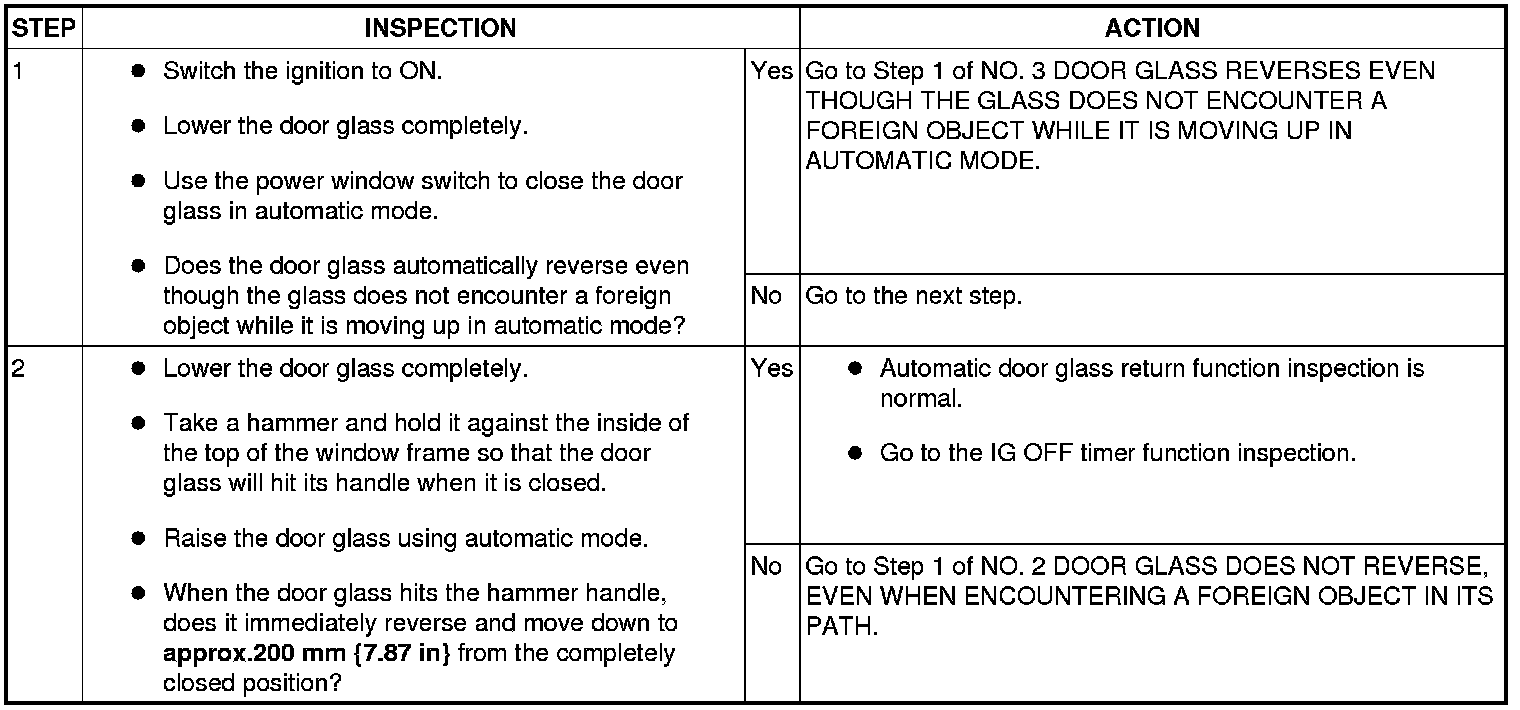

Automatic Door Glass Return Function Inspection

NOTE:
- Perform the following inspection for the power window main switch and the power window subswitches for each window.
- With the switch held at auto-up, the door glass does not automatically reverse even when a foreign object is encountered.

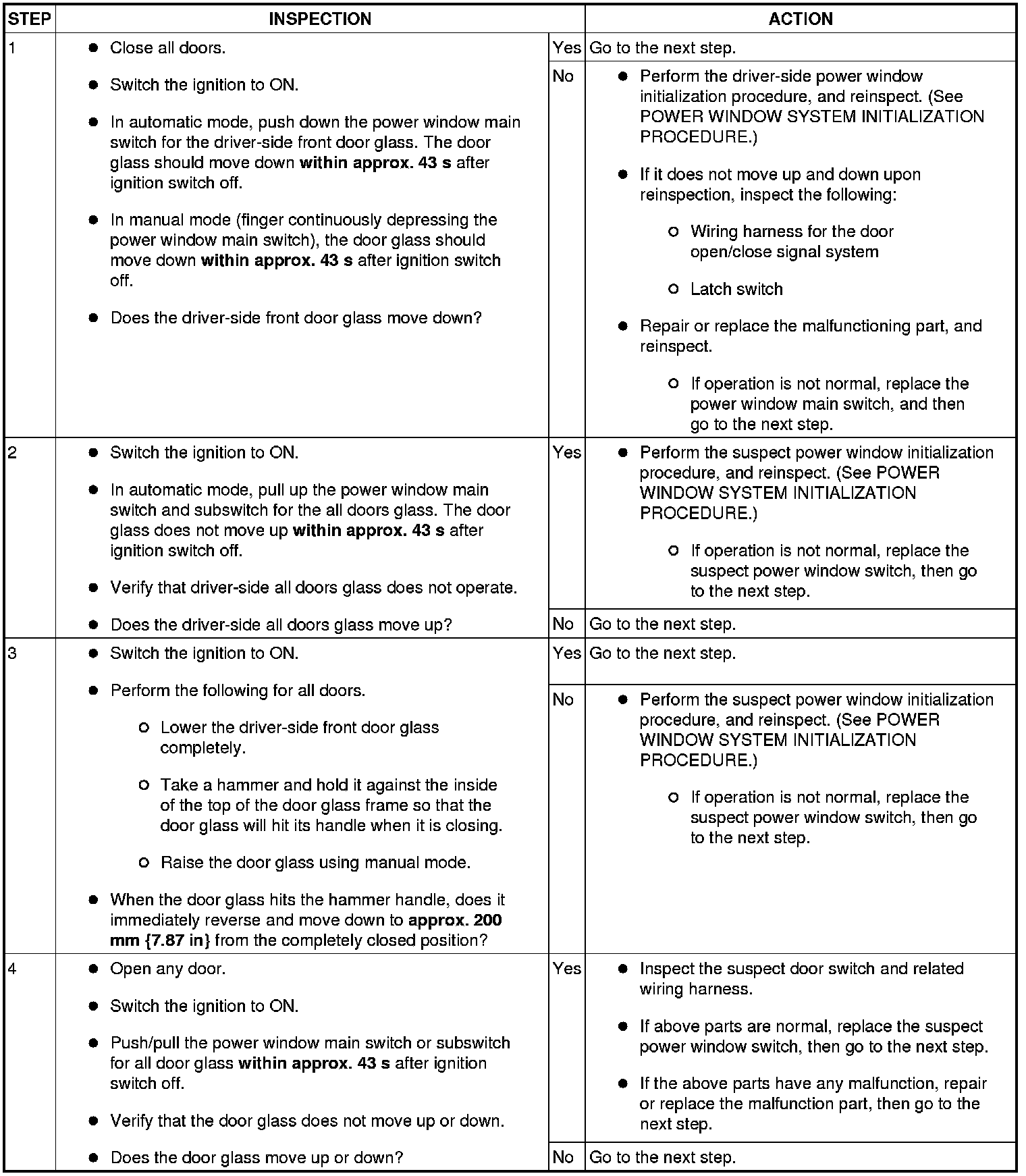

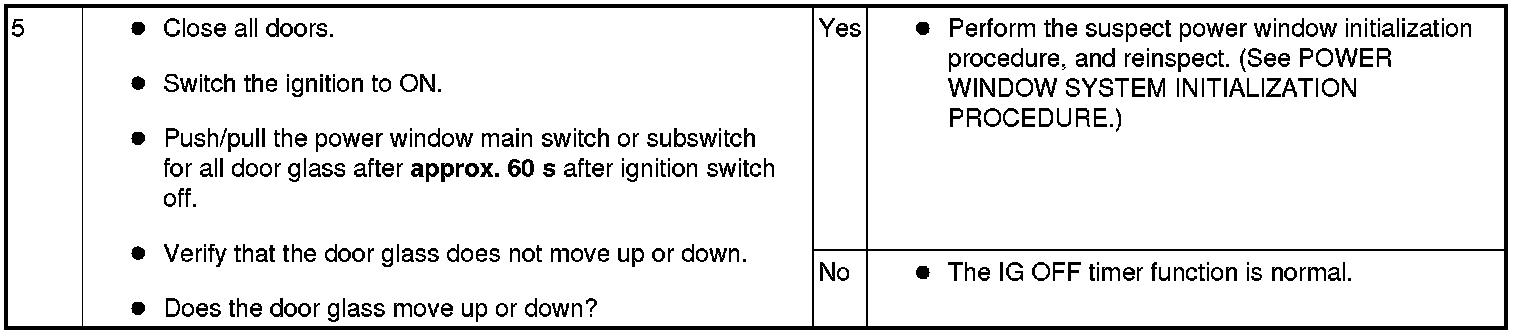

IG OFF Timer Function Inspection
