Engine - DTC Table

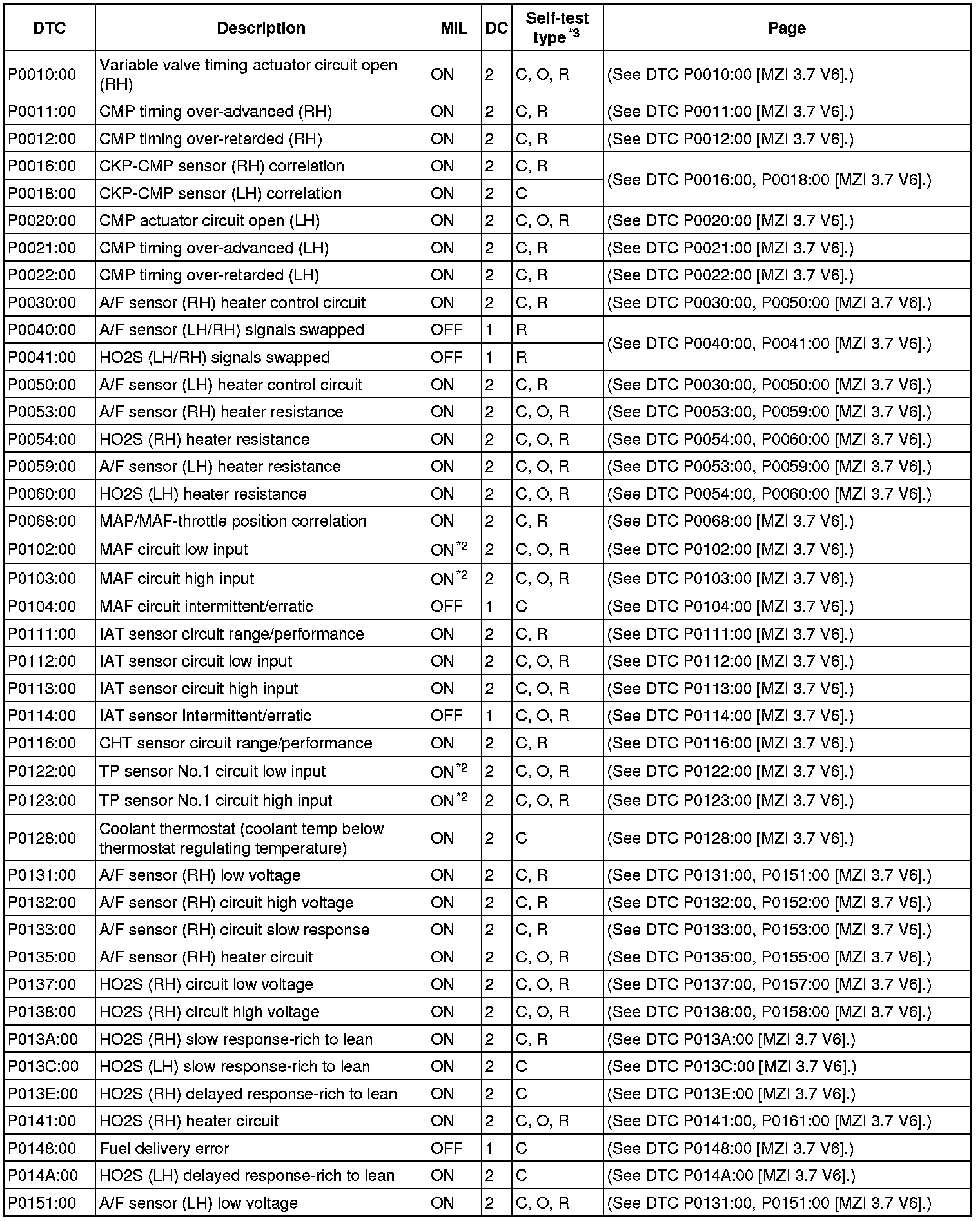

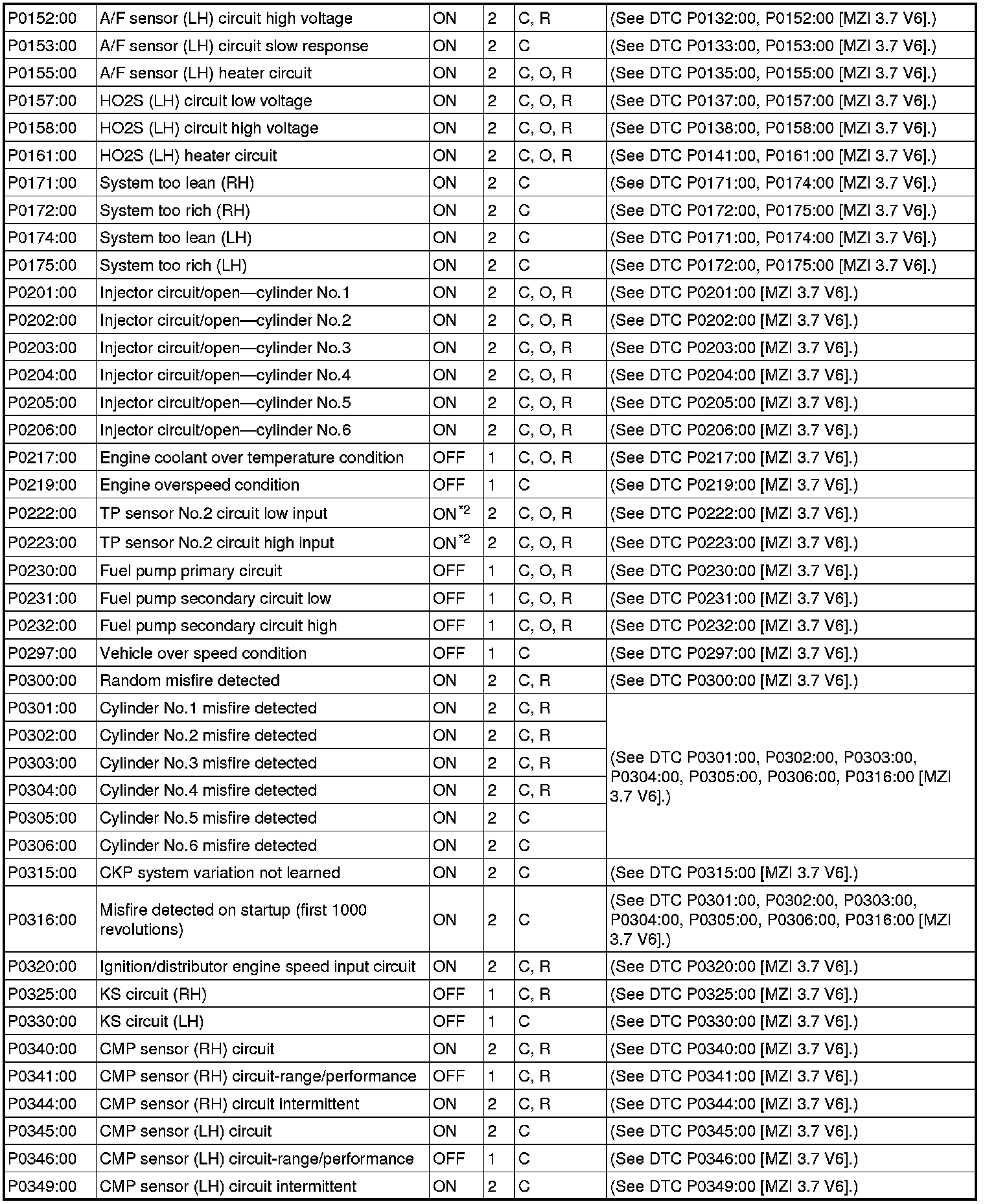

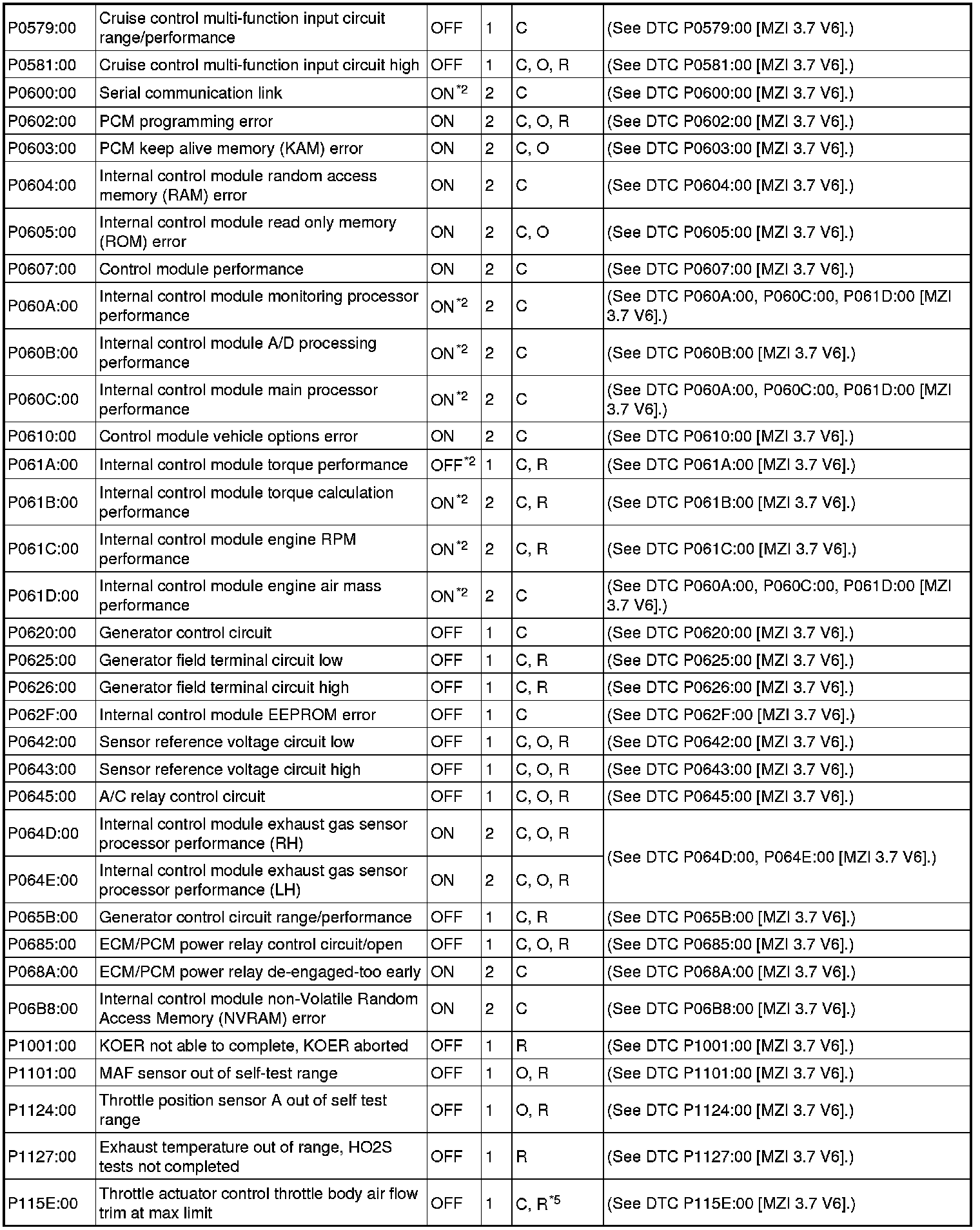

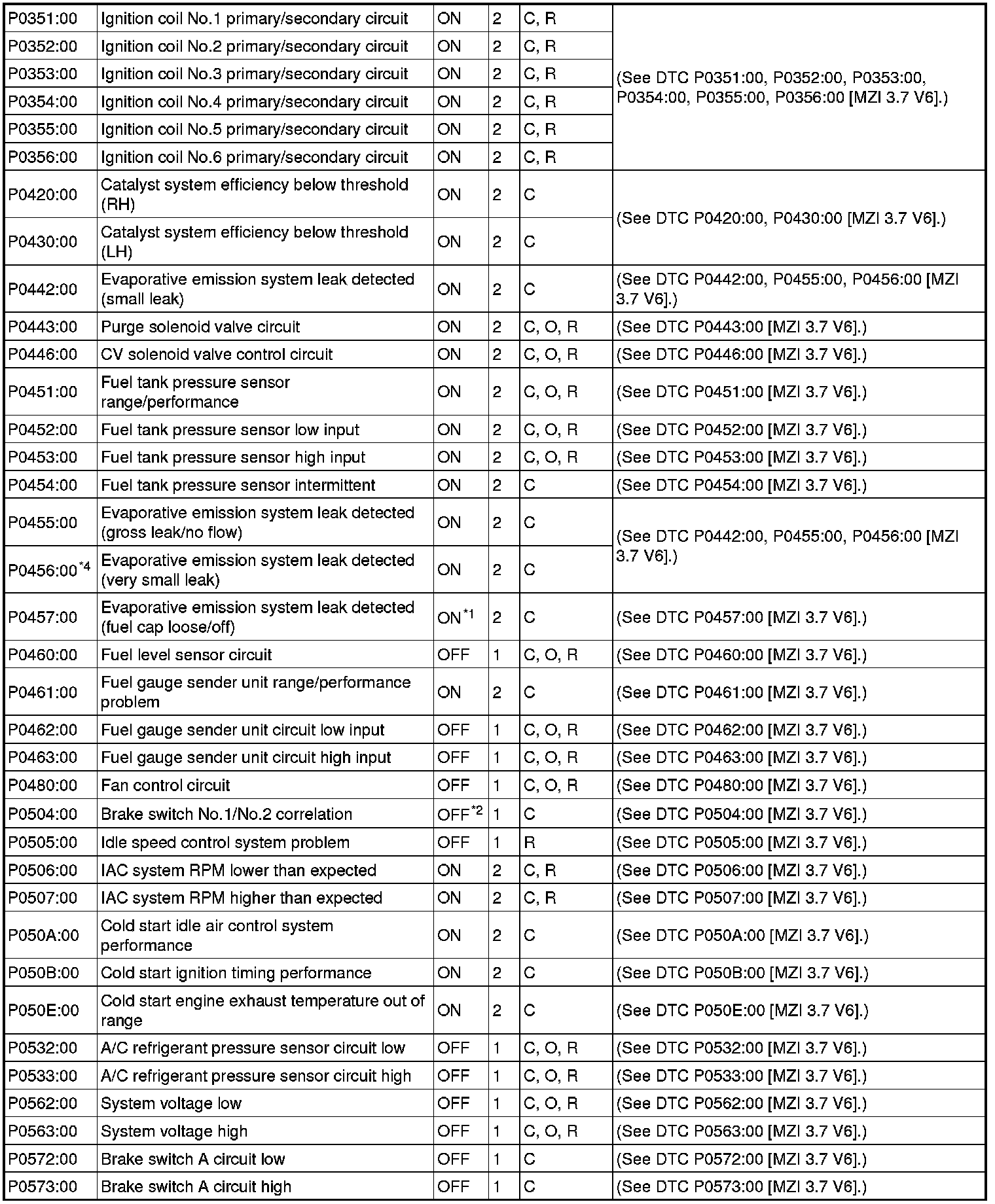

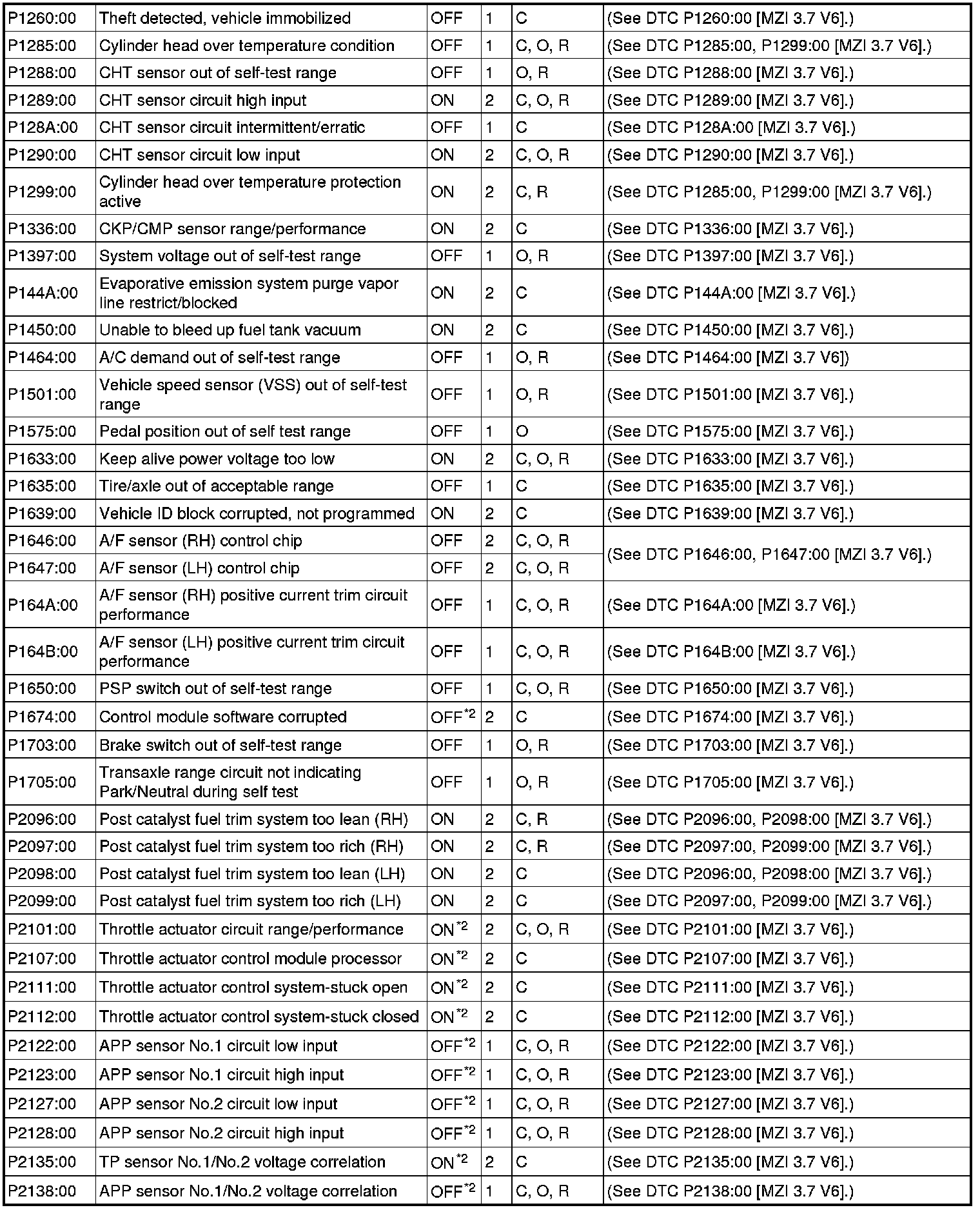

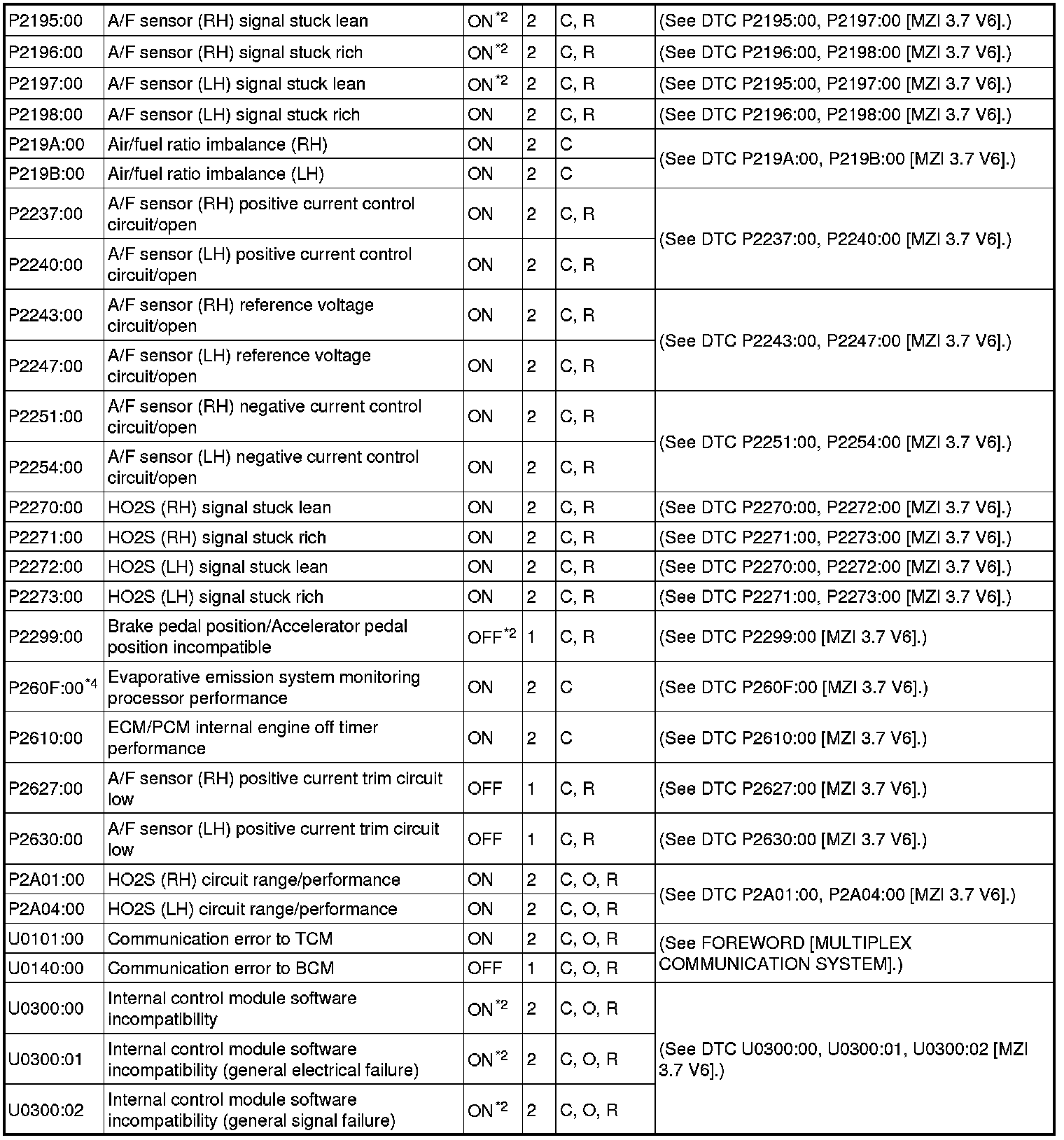

DTC TABLE [MZI 3.7 V6]

*1
The fuel cap warning light illuminates.
*2
The powertrain malfunction/Reduce power warning light illuminates.
*3
C: CMDTC self test, O: KOEO self test, R: KOER self test
*4
California emission regulations applicable model
*5
Except for California emission regulations applicable model
