Trunk / Liftgate Latch: Service and Repair
TRUNK LID LATCH AND RELEASE ACTUATOR REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the recess.
Recess Removal/Installation 3.
Remove the trunk lid trim.
4.

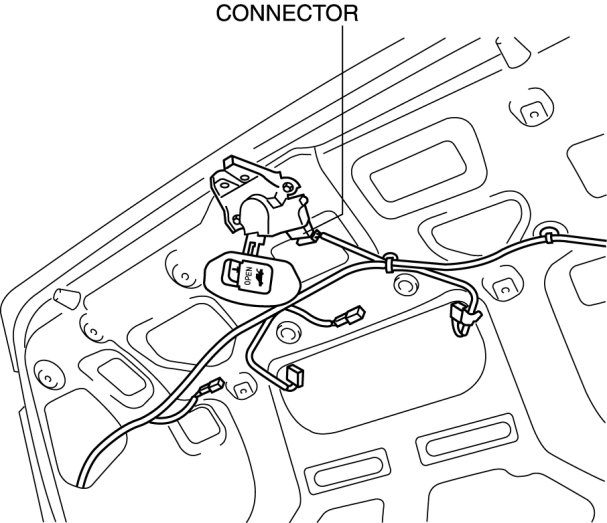

Disconnect the connector.
5.

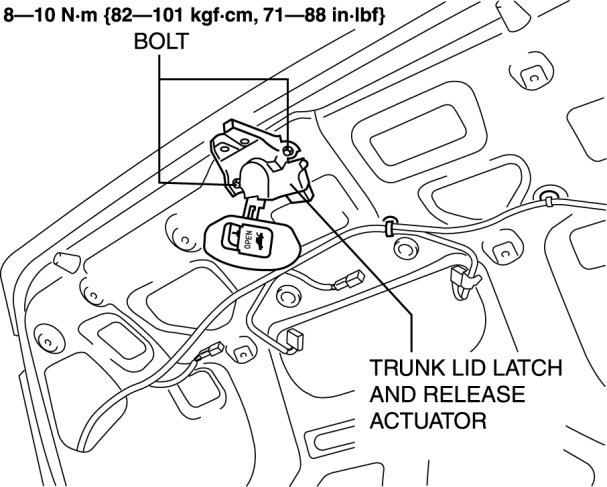

Remove the bolts.
6.
Remove the trunk lid latch and release actuator.
7.
Install in the reverse order of removal.
