Brake Fluid Pressure Sensor/Switch: Testing and Inspection

BRAKE FLUID PRESSURE SENSOR INSPECTION

1. Switch the ignition to off.

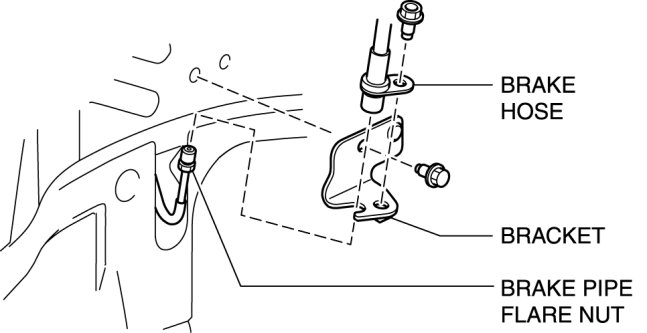

2. Disconnect the brake pipe.






3. Remove the brake hose (LF).

4. Remove the bracket.

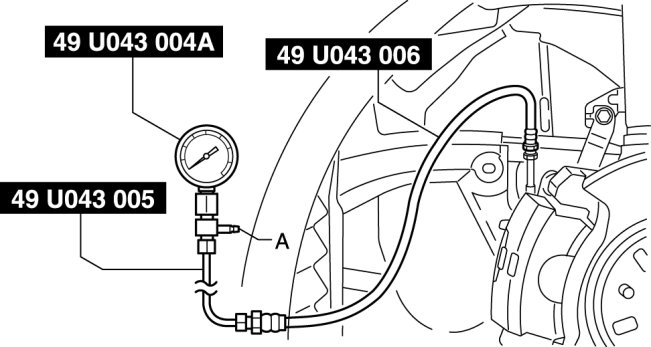

5. Install the SSTs to the brake pipe as shown in the figure.






6. Perform air bleeding of the SST and brake line from bleeder screw A.

7. Connect the M-MDS (IDS) to the DLC-2.






8. Select the "MCYLI_P" PID. On-Board Diagnosis

9. Start the engine.

10. Depress the brake pedal, and verify that the fluid pressure value of the SST (gauge) and the value shown on the M-MDS are equal.

- If the fluid pressure values are different, replace the DSC HU/CM. Service and Repair

11. Remove the SSTs after the inspection and install the bracket, brake hose and brake pipe to their original positions. Brake Hose (Front) Removal/Installation

12. Perform air bleeding of the brake line. Service and Repair
