Brake Light Bulb: Service and Repair

BRAKE/TAILLIGHT BULB REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the trunk end trim. Service and Repair

3. Partially peel back the trunk side trim.

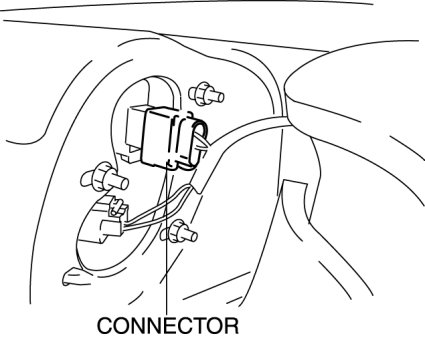

4. Disconnect the connectors shown in the figure.

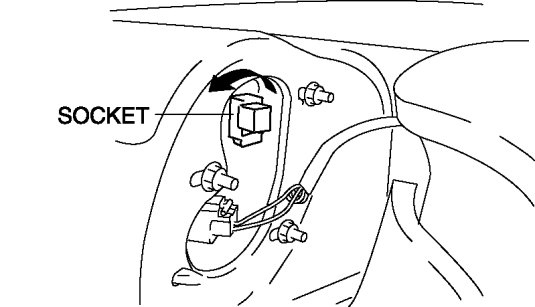

5. Rotate the brake/taillight socket in the direction of the arrow shown in the figure and remove it.

6. Remove the brake/taillight bulb.

7. Install in the reverse order of removal.
