Ignition Coil: Testing and Inspection
IGNITION COIL INSPECTION [MZI 3.7 V6]Secondary Coil Resistance Inspection 1.
Remove the
ignition coils.
Service and Repair 2.

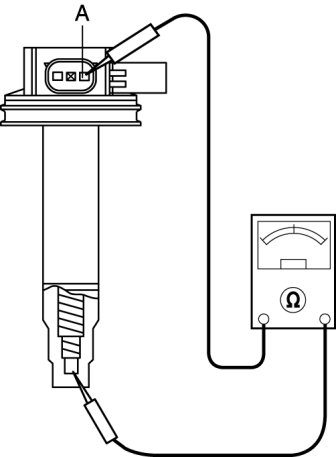

Using a tester, measure the resistance between the
ignition coil terminal A and ignition coil boot socket.
1
If not within specification, replace the
ignition coil.
Ignition coil secondary coil resistance -
5-6 kohms
