Seat Position Sensor: Service and Repair

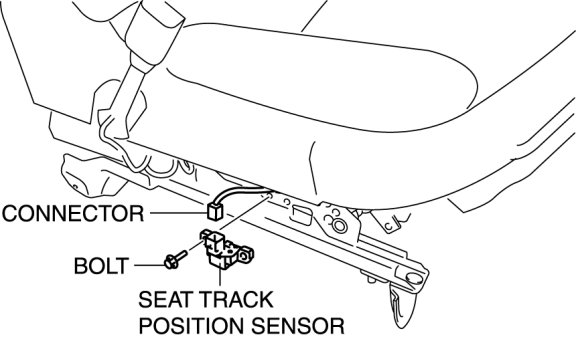

SEAT TRACK POSITION SENSOR REMOVAL/INSTALLATION 1.
Switch the ignition to off.
2.
Disconnect the negative battery cable and wait for
1min or more.
3.
Disconnect the connector.
4.
Remove the bolt.
5.
Remove the seat track position sensor.
6.
Install in the reverse order of removal.
