Rear Wheel Alignment
REAR WHEEL ALIGNMENT
Specification (Unloaded)*1
Rear wheel alignment
*1
Engine coolant and engine oil are at specified level. Spare tire, jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.
Total Toe-in Adjustment

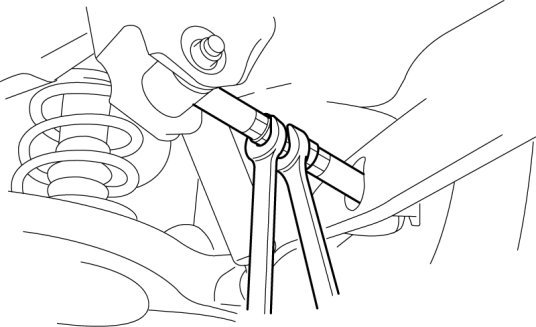

1. Loosen the locknut of the lateral link.

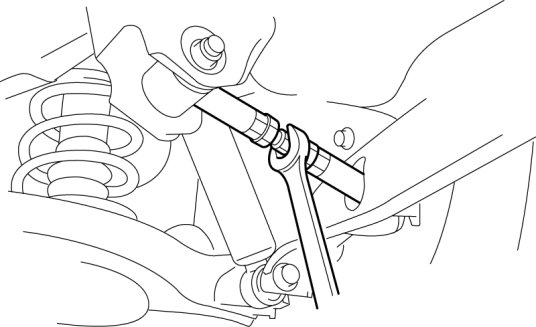

2. Adjust the toe-in turning the adjusting link.
Total toe-in
- 2±4 mm {0.08±0.16 in}
NOTE:
- Toe change amount: 0°21'/ one rotation
3. Tighten the locknut.
Tightening torque
- 61-98 Nm {6.3-9.9 kgf-m, 45-72 ft-lbf}
