Removal and Replacement
WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the windshield wiper arm and blade.
Service and Repair 3.
Remove the cowl grille.
Cowl Grille Removal/Installation 4.

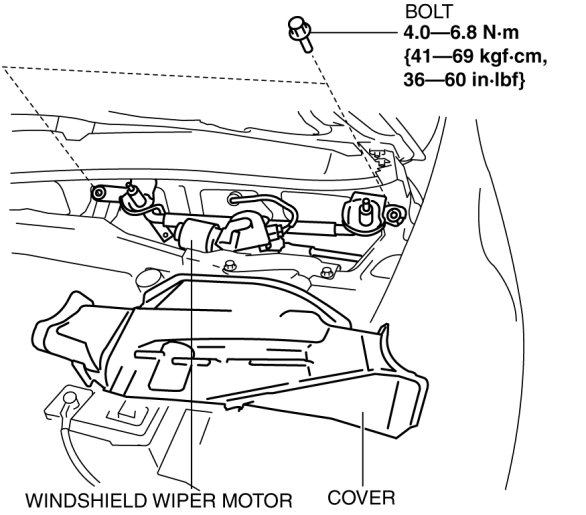

Remove the cover, and remove the bolt.
5.
Remove the windshield wiper motor.
6.
Install in the reverse order of removal.
