Lateral Stabilizer Rod: Service and Repair

REAR LATERAL LINK REMOVAL/INSTALLATION

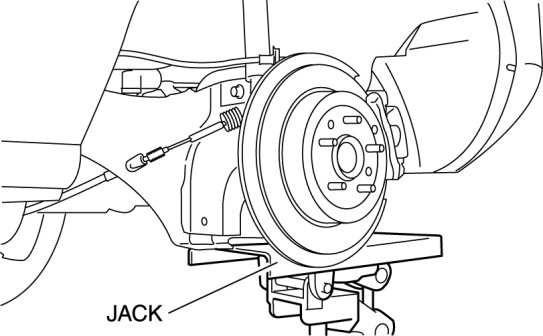

1. Raise the rear trailing link to the unloaded condition with a jack.

NOTE:
- Jacking up the rear suspension to the no-occupant position will lighten the force on the bushing and make it easier to perform the procedure.

2. Remove the rear lateral link.

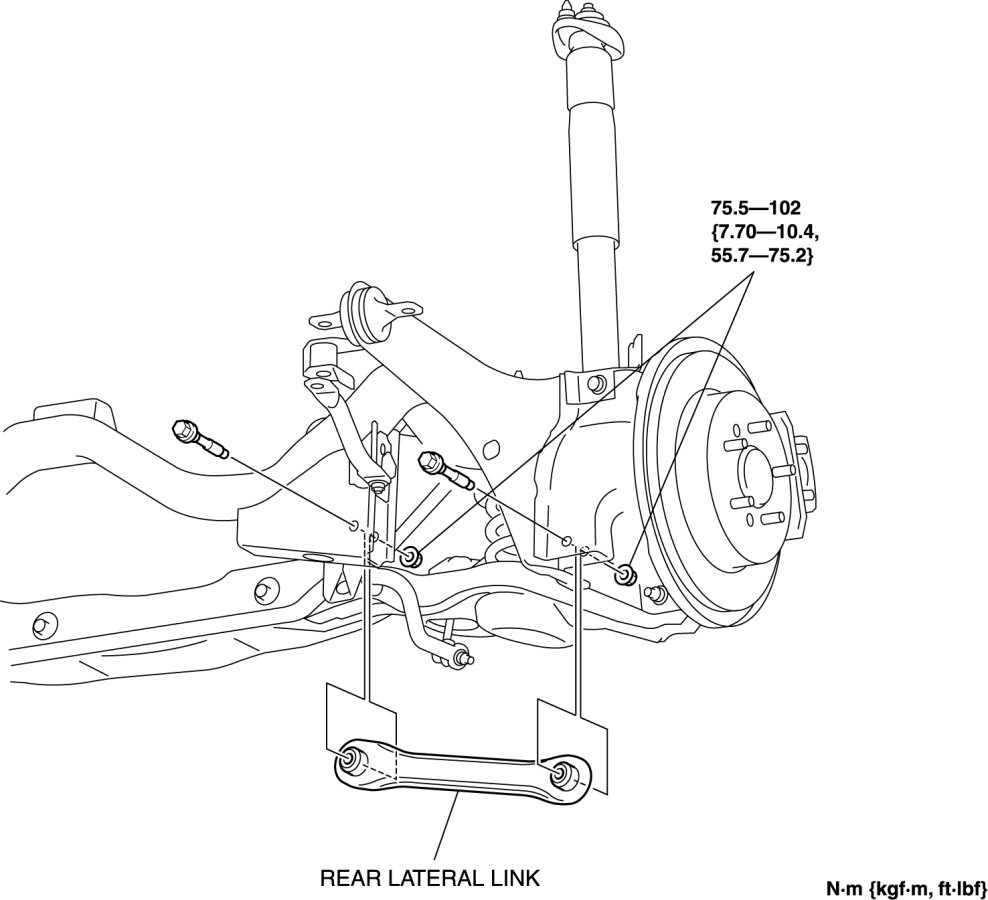

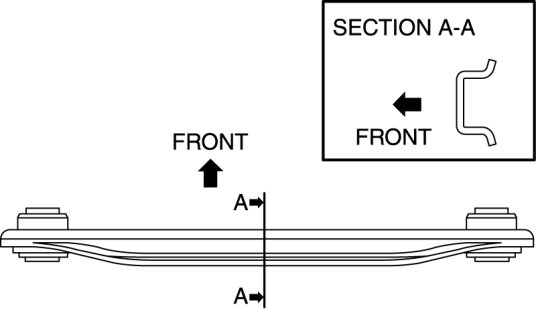

3. Install the rear lateral link shown in the figure.

4. Inspect the rear wheel alignment. Rear Wheel Alignment
